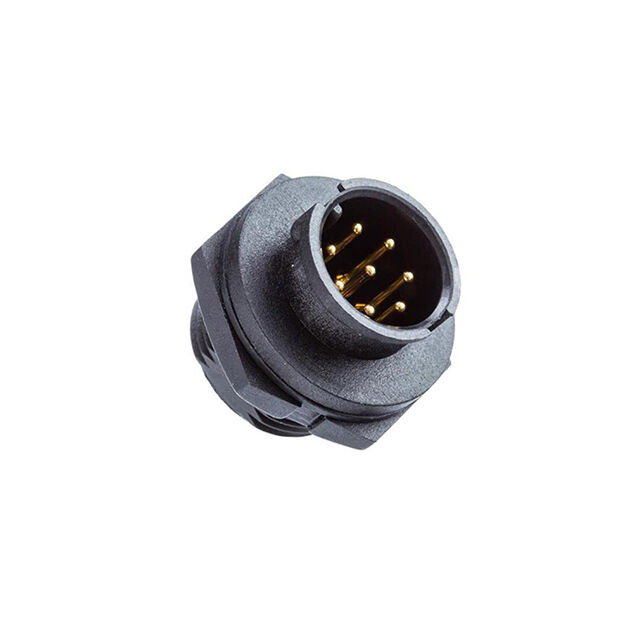

ABD-05RMMS-LC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, PLASTIC, 5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, PLASTIC, 5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ABD-05RMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Current Rating (Amps)	Shell Finish	Material Flammability Rating	Contact Finish - Mating	Orientation	Shielding	Mounting Feature	Ingress Protection	Fastening Type	Contact Material	Color	Voltage Rating	Shell Size - Insert	Connector Type	Primary Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW ABD-05RMMS-LC7001	5 A	Nickel	UL94 V-0	Gold	Keyed	Unshielded	Bulkhead - Rear Side Nut	IP67 - Dust Tight Waterproof	Bayonet Lock	Copper Alloy	Black	300 VDC	B	Male Pins Receptacle	Plastic	Polyamide (PA) Nylon Glass Filled	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
