Technical Specifications
Parameters and characteristics for this part
| Specification | 04820003ZXBF |
|---|---|
| Contact Finish | Tin |
| Contact Material | Beryllium Copper |
| Current Rating (Amps) | 15 A |
| For Use With/Related Products | 481 Alarm Fuse |
| Fuse Size [x] | 0.665 " |
| Fuse Size [x] | 16.9 mm |
| Fuse Size [y] | 0.315 " |
| Fuse Size [y] | 8 mm |
| Fuse Size [z] | 0.772 " |
| Fuse Size [z] | 19.6 mm |
| Fuse Type | Blade |
| Fuseholder Type | Holder |
| Mounting Type | Through Hole |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
04820003ZXBF Series

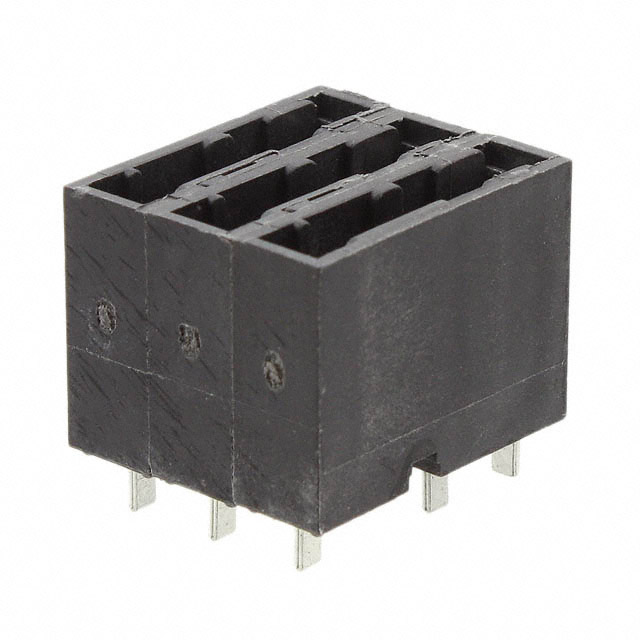

ACS ALARM HLDR PCB MT 3 POLE
Documents
Technical documentation and resources
