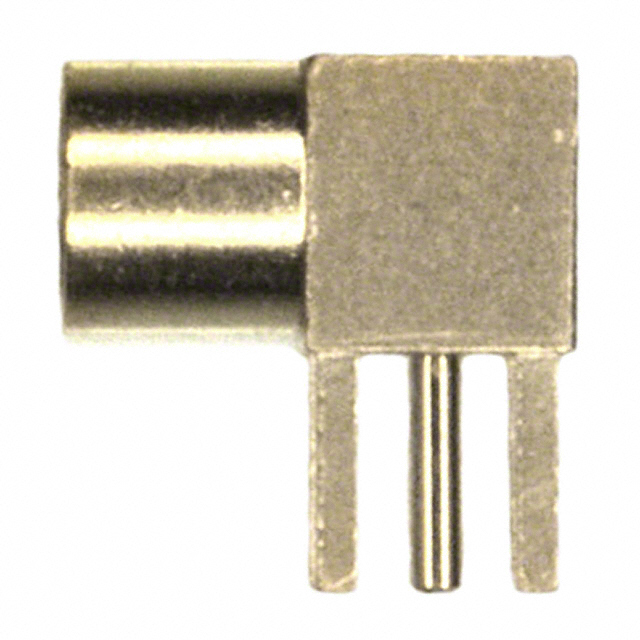

908-24100

Active

Amphenol RF

CONN MMCX JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN MMCX JACK R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	908-24100

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Shield Termination	Solder

Part	Body Finish	Impedance	Mounting Type	Body Material	Housing Color	Center Contact Plating	Connector Type	Connector Style	Number of Ports	Dielectric Material	Mating Cycles	Contact Termination	Shield Termination	Center Contact Material	Frequency - Max [Max]	Fastening Type
Amphenol RF 908-24100	Gold	50 Ohms	Through Hole Right Angle	Brass	Gold	Gold	Female Socket Jack	MMCX	1	Polytetrafluoroethylene (PTFE)	500	Solder	Solder	Beryllium Copper	6000 MHz	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
