UPT-06-03.0-01-L-V - UPT-06-03.0-01-L-V

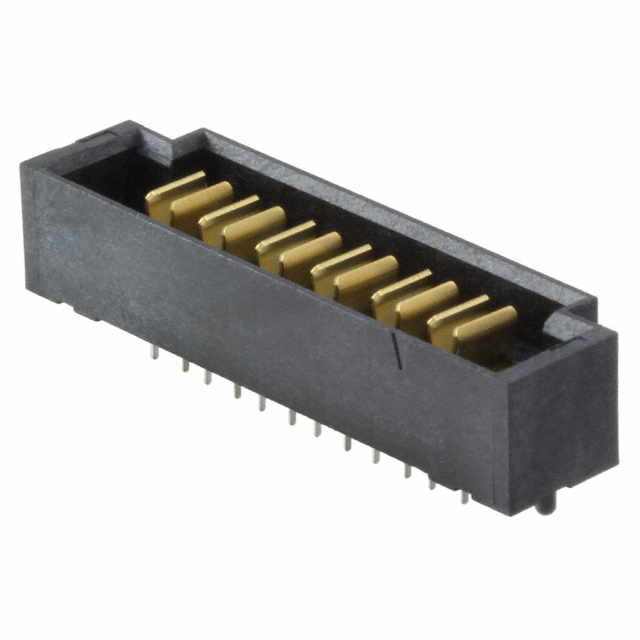

UPT-06-03.0-01-L-V

Active
Samtec Inc.

CONN WIRE TO BOARD HDR 6POWER POS 2MM/1.81MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetUPS Series Other Related Documents 03+2
UPT-06-03.0-01-L-V - UPT-06-03.0-01-L-V

UPT-06-03.0-01-L-V

Active
Samtec Inc.

CONN WIRE TO BOARD HDR 6POWER POS 2MM/1.81MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TUBE

Deep-Dive with AI

DocumentsDatasheetUPS Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationUPT-06-03.0-01-L-V
ColorBlack
Connector TypeMale Blades, Header
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialBeryllium Copper
Current Rating (Amps)20 A
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions6
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.15 in
Pitch [x]3.81 mm
TerminationSolder
Voltage Rating620 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 5.63
25$ 5.09
50$ 4.73
100$ 4.51
DigikeyTube 1$ 5.63
25$ 5.09
50$ 4.73
100$ 4.71

Description

General part information

UPT-06 Series

6 Position Header, Male Blades Connector Solder 0.150" (3.81mm) Through Hole
