Q8F1BXXW110E

Active

APEM

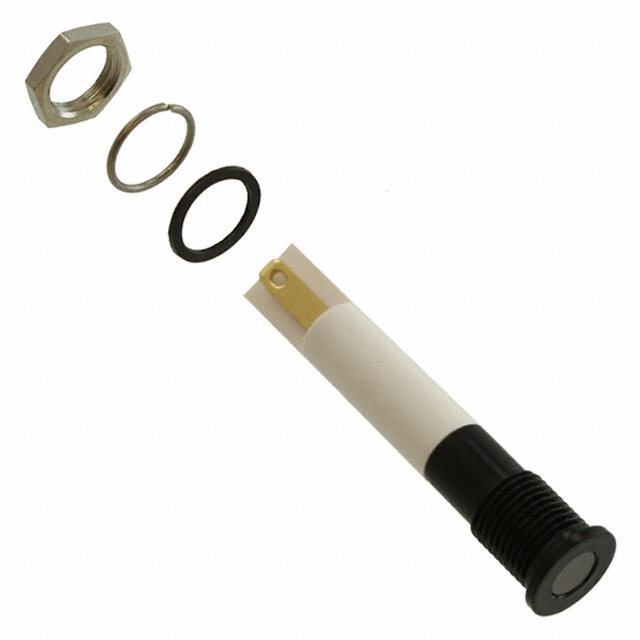

LED PANEL MOUNT INDICATOR, FLUSH BEZEL, WHITE, 110 VAC, 8 MM, 6 MA, 25 MCD, IP67

Search across all available documentation for this part.

Active

APEM

LED PANEL MOUNT INDICATOR, FLUSH BEZEL, WHITE, 110 VAC, 8 MM, 6 MA, 25 MCD, IP67

Technical Specifications

Parameters and characteristics for this part

Specification	Q8F1BXXW110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	White
Lens Color	White
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Transparency	Diffused
Millicandela Rating	500 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Solder Lug
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Termination Style	Millicandela Rating	Lamp Color	Voltage	Viewing Angle	Panel Cutout Shape	Lens Color	Lens Transparency	Type	Ingress Protection	Ratings	Current	Lens Size	Lens Size
APEM Q8F1BXXW110E	0.31 in	7.87 mm	Solder Lug	500 mcd	White	110 V	100 °	Round	White	Diffused	LED	IP67	AC	6 mA	T-1 3/4	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator White Diffused 100° 110V 6mA Solder Lug
