74AHCT3G14GT,115

Active

Freescale Semiconductor - NXP

IC INVERT SCHMITT 3CH 3INP 8XSON

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC INVERT SCHMITT 3CH 3INP 8XSON

Technical Specifications

Parameters and characteristics for this part

Specification	74AHCT3G14GT,115

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Max) [Max]	1 çA
Features	Schmitt Trigger
Input Logic Level - Low [Max]	0.6 V
Input Logic Level - Low [Min]	0.5 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	8.5 ns
Mounting Type	Surface Mount
Number of Circuits	3
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

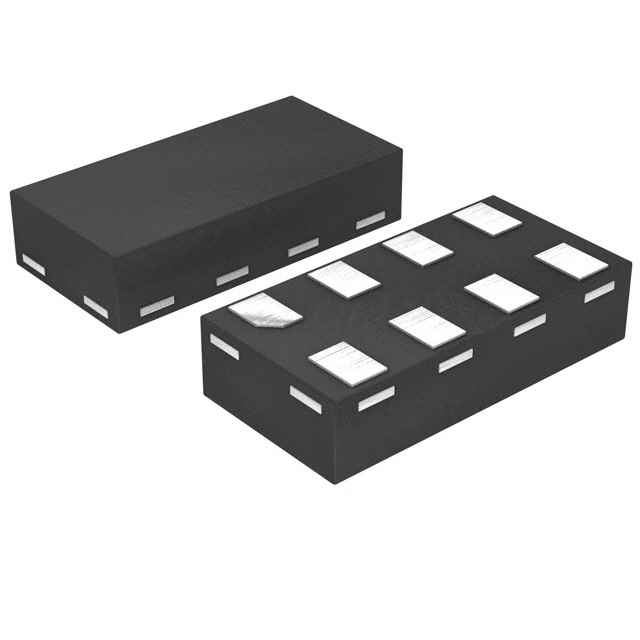

Package / Case	8-XFDFN
Supplier Device Package	8-XSON (1.95x1)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Number of Inputs	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Circuits	Package / Case	Current - Quiescent (Max) [Max]	Supplier Device Package	Logic Type	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Max Propagation Delay @ V, Max CL
Freescale Semiconductor - NXP 74AHCT3G14GT,115	3	4.5 V	5.5 V	0.5 V	0.6 V	3	8-XFDFN	1 çA	8-XSON (1.95x1)	Inverter	Schmitt Trigger	Surface Mount	125 °C	-40 °C	8 mA	8 mA	8.5 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Inverter IC 3 Channel Schmitt Trigger 8-XSON (1.95x1)

Technical documentation and resources

No documents available
