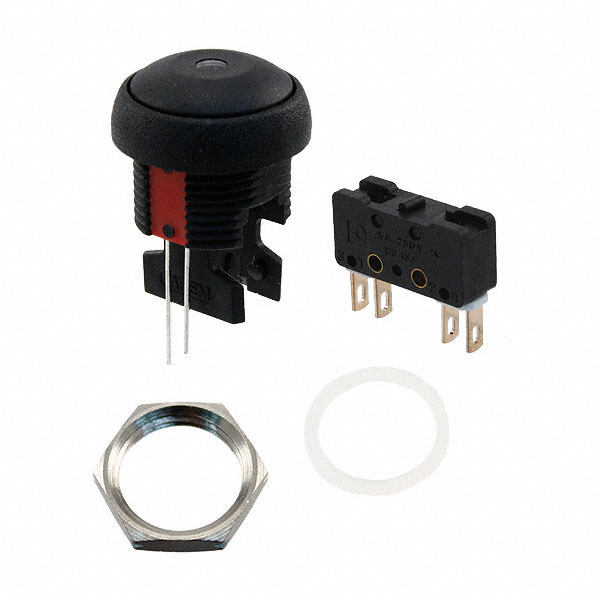

IRR8Z222L0S

Active

APEM

INDUSTRIAL PUSHBUTTON SWITCH, IR SERIES, 16.2 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND, BLACK

Search across all available documentation for this part.

Active

APEM

INDUSTRIAL PUSHBUTTON SWITCH, IR SERIES, 16.2 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	IRR8Z222L0S

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	25000 Steps
Features	Tactile Feedback
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	250 V

Part	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Marking	Mounting Type	Ingress Protection	Actuator Type	Type	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Mechanical Life	Features	Switch Function	Current Rating (Amps)	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Circuit	Illumination Type, Color
APEM IRR8Z222L0S	25000 Steps	16.2 mm	No Marking	Panel Mount Front	IP67 - Dust Tight Waterproof	Button Round	Illuminated Standard	250 V	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Tactile Feedback	Off-Mom On-Mom	5 A	2 VDC	85 °C	-20 C	Black	DPST-NO/NC	LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
