356-024-421-112

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

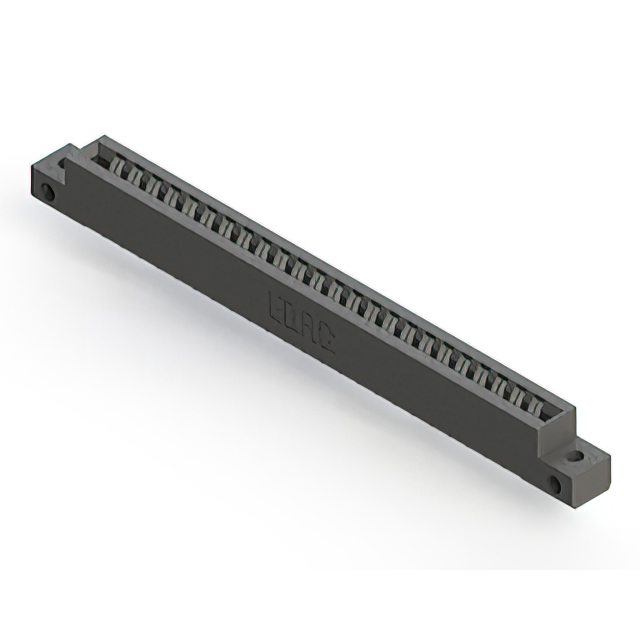

356-024-421-112

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-024-421-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	56
Number of Positions/Bay/Row [custom]	24
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-024 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Termination	Gender	Card Type	Termination Rows	Number of Positions/Bay/Row [custom]	Mounting Type	Material - Insulation	Number of Rows	Contact Finish	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 356-024-520-101	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Through Hole	Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56
EDAC Inc. 356-024-521-158	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Panel Mount Through Hole	Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-024-521-107	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Panel Mount Through Hole	Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 356-024-520-168	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Panel Mount Through Hole	Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-024-500-102	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder Eyelet(s)	Female	Non Specified - Dual Edge	1	24		Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 356-024-500-108	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder Eyelet(s)	Female	Non Specified - Dual Edge	1	24		Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-024-520-178	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Panel Mount Through Hole	Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-024-520-158	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Panel Mount Through Hole	Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-024-500-107	10 Áin	0.25 Ám	0.156 in	3.96 mm	Solder Eyelet(s)	Female	Non Specified - Dual Edge	1	24		Polyester Thermoplastic	2	Gold	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 356-024-421-112			0.156 in	3.96 mm	Solder	Female	Non Specified - Dual Edge	1	24	Panel Mount Through Hole	Polyester Thermoplastic	2	Tin	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	Cantilever	-40 °C	105 ░C	56		Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.24
Newark	Each	1	$ 17.17
		100	$ 10.23
		250	$ 8.53
		500	$ 7.75
		1000	$ 6.63

Description

General part information

356-024 Series

56 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
