LFXP2-5E-7M132C

Obsolete

LATTICE SEMICONDUCTOR

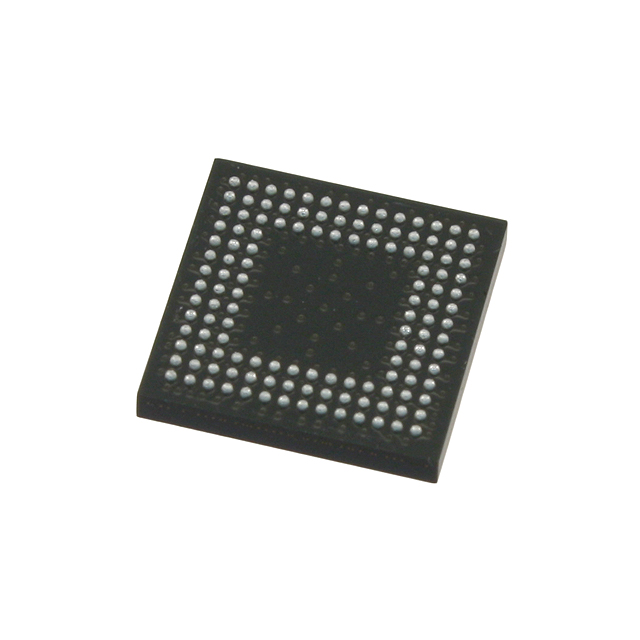

IC FPGA 86 I/O 132CSBGA

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 86 I/O 132CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LFXP2-5E-7M132C

Mounting Type	Surface Mount
Number of I/O	86
Number of LABs/CLBs	625
Number of Logic Elements/Cells	5000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	CSPBGA, 132-LFBGA
Supplier Device Package	132-CSBGA (8x8)
Total RAM Bits	169984 bits

Part	Total RAM Bits	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Number of LABs/CLBs	Package / Case	Number of Logic Elements/Cells	Supplier Device Package	Mounting Type	Contents	For Use With/Related Products	Platform
LATTICE SEMICONDUCTOR LFXP2-5E-6TN144I	169984 bits	100 °C	-40 C	100 I/O	625	144-LQFP	5000	144-TQFP (20x20)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-5FT256I	169984 bits	100 °C	-40 C	172	625	256-LBGA	5000	256-FTBGA (17x17)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-6M132I	169984 bits	100 °C	-40 C	86	625	132-LFBGA CSPBGA	5000	132-CSBGA (8x8)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-5M132I	169984 bits	100 °C	-40 C	86	625	132-LFBGA CSPBGA	5000	132-CSBGA (8x8)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-7FTN256C	169984 bits	85 °C	0 °C	172	625	256-LBGA	5000	256-FTBGA (17x17)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-B2-EVN										Board(s) Cable(s) Power Supply	LFXP2-5	XP2 FPGA Brevia 2
LATTICE SEMICONDUCTOR LFXP2-5E-5M132C	169984 bits	85 °C	0 °C	86	625	132-LFBGA CSPBGA	5000	132-CSBGA (8x8)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-5FTN256C	169984 bits	85 °C	0 °C	172	625	256-LBGA	5000	256-FTBGA (17x17)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-7TN144C	169984 bits	85 °C	0 °C	100 I/O	625	144-LQFP	5000	144-TQFP (20x20)	Surface Mount
LATTICE SEMICONDUCTOR LFXP2-5E-7M132C	169984 bits	85 °C	0 °C	86	625	132-LFBGA CSPBGA	5000	132-CSBGA (8x8)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

XP2 Field Programmable Gate Array (FPGA) IC 86 169984 5000 132-LFBGA, CSPBGA
