625-25AB

Active

Wakefield-Vette

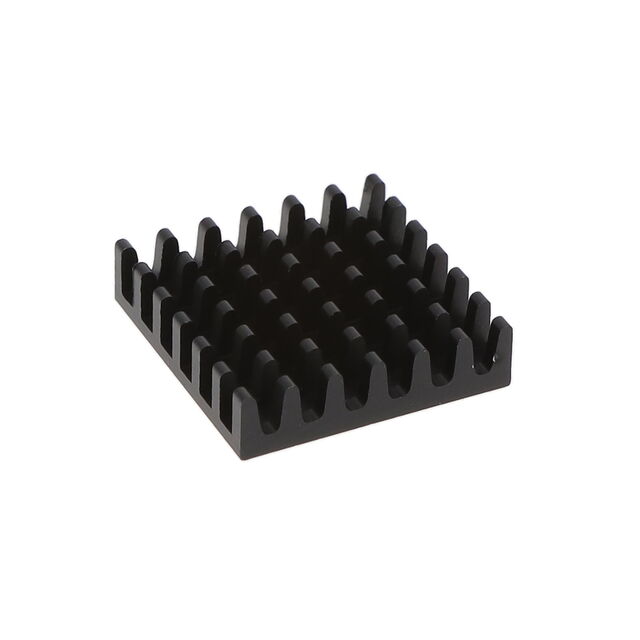

HEATSINK FOR 25MM BGA

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK FOR 25MM BGA

Technical Specifications

Parameters and characteristics for this part

Specification	625-25AB

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	6.35 mm
Fin Height [z]	0.25 in
Length	25 mm
Length	0.984 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	12 °C/W
Type	Top Mount
Width	25 mm
Width [x]	0.984 in

Part	Thermal Resistance @ Forced Air Flow	Material Finish	Length	Length	Fin Height [z]	Fin Height [z]	Attachment Method	Shape	Type	Width	Width [x]	Package Cooled	Material
Wakefield-Vette 625-25ABT1E	12 °C/W	Black Anodized	25 mm	0.984 in	6.35 mm	0.25 in	Thermal Tape Adhesive (Included)	Pin Fins Square	Top Mount	25 mm	0.984 in	BGA	Aluminum
Wakefield-Vette 625-25AB	12 °C/W	Black Anodized	25 mm	0.984 in	6.35 mm	0.25 in	Thermal Tape Adhesive (Included)	Pin Fins Square	Top Mount	25 mm	0.984 in	BGA	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2200	$ 2.27

General part information

Heat Sink BGA Aluminum Top Mount
