CS20-22MOF1

Active

IXYS

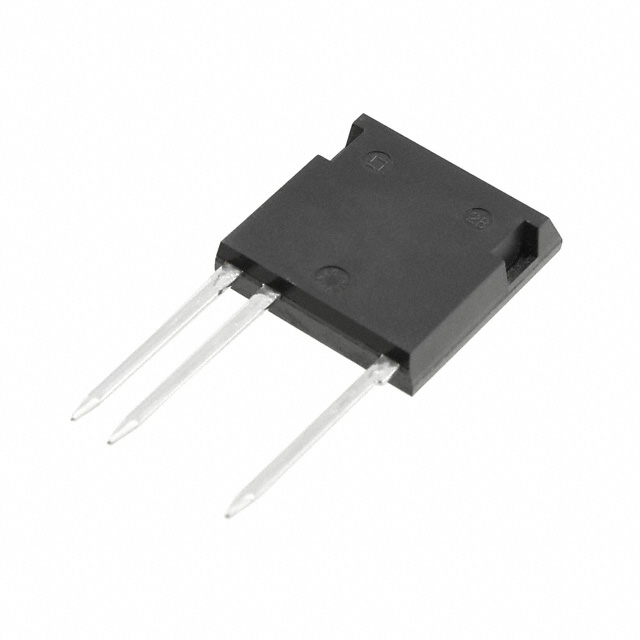

SCR 2.2KV I4-PAC

Search across all available documentation for this part.

Active

IXYS

SCR 2.2KV I4-PAC

Technical Specifications

Parameters and characteristics for this part

Specification	CS20-22MOF1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200 A
Current - Off State (Max) [Max]	50 µA
Current - On State (It (AV)) (Max) [Max]	18 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	i4-Pac™-5 (3 Leads)
SCR Type	Standard Recovery
Supplier Device Package	ISOPLUS i4-PAC™
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.3 V
Voltage - Off State	2.2 kV
Voltage - On State (Vtm) (Max) [Max]	1.5 V

Part	Voltage - Off State	Package / Case	Supplier Device Package	Mounting Type	SCR Type	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current - Off State (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (AV)) (Max)	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]
IXYS CS20-25MO1F	2.5 kV	i4-Pac™-5 (3 Leads)	ISOPLUS i4-PAC™	Through Hole	Standard Recovery
IXYS CS20-25MOT1-TUB	2.5 kV	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	TO-268AA	Surface Mount	Standard Recovery	300 mA	2.5 V	-10 °C	158 °F	50 µA	200 A	250 mA	3 V
IXYS CS20-22MOF1	2.2 kV	i4-Pac™-5 (3 Leads)	ISOPLUS i4-PAC™	Through Hole	Standard Recovery	150 mA				50 µA	200 A	250 mA	1.5 V	18 A	125 °C	-40 °C	2.3 V
IXYS CS20-12IO1	1.2 kV	TO-247-3	TO-247AD	Through Hole	Standard Recovery	100 mA				2 mA		65 mA	2.1 V		125 °C	-40 °C	1 V	19 A	30 A	200 A	215 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 2.2 kV Standard Recovery Through Hole ISOPLUS i4-PAC™
