TTN0.38SV300

Active

Techflex

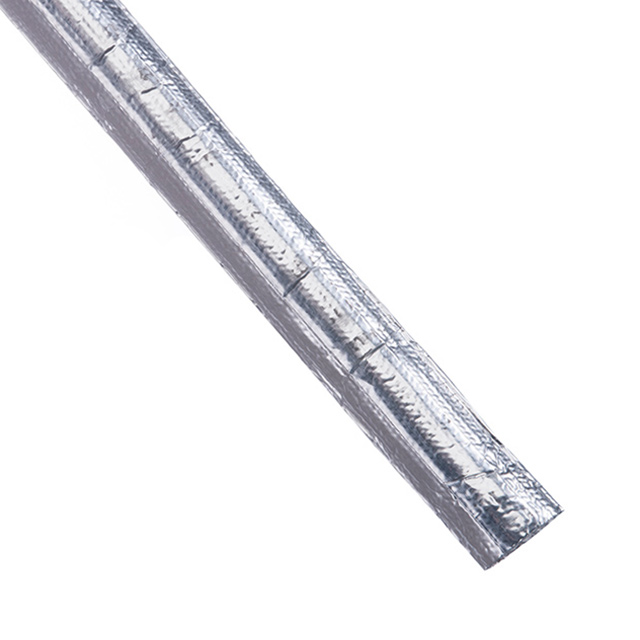

SLEEVING 0.375" ID 300' SILVER

Search across all available documentation for this part.

Active

Techflex

SLEEVING 0.375" ID 300' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	TTN0.38SV300

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside [diameter]	9.52 mm
Diameter - Inside [diameter]	0.375 in
Diameter - Outside [diameter]	10.8 mm
Diameter - Outside [diameter]	0.425 in
Features	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant
Length	300 ft
Length	91.44 m
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Type	Liquid Protection	Material Flammability Rating	Color	Material	Length	Length	Wall Thickness [custom]	Wall Thickness [custom]	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Heat Protection	Abrasion Protection
Techflex TTN0.75SV100	19.05 mm	0.75 in	Convoluted - Braided	Sleeving Insulated	Gasoline Resistant	Non Flammable	Silver	Aluminized Fiberglass Halogen Free	100 ft	30.48 m	0.025 in	0.64 mm	Chemical Resistant Clean Cut	20.32 mm	0.8 in	-60 °C	255 °C	Flame Retardant Heat Resistant	Abrasion Resistant
Techflex TTN0.38SV300	9.52 mm	0.375 in	Convoluted - Braided	Sleeving Insulated	Gasoline Resistant	Non Flammable	Silver	Aluminized Fiberglass Halogen Free	300 ft	91.44 m	0.025 in	0.64 mm	Chemical Resistant Clean Cut	10.8 mm	0.425 in	-60 °C	255 °C	Flame Retardant Heat Resistant	Abrasion Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Fiberglass, Aluminized, Halogen Free Convoluted - Braided Sleeving, Insulated 0.375" (9.52mm) 300' (91.44m)
