FDSD0512-H-K2R2M=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 2.2UH 3.2A 68 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FDSD0512-H-K2R2M=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 2.2UH 3.2A 68 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FDSD0512-H-K2R2M=P3 |
|---|---|
| Current Rating (Amps) | 3.2 A |
| DC Resistance (DCR) [Max] | 68 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.205 in |
| Size / Dimension [x] | 5.2 mm |
| Size / Dimension [y] | 0.193 in |
| Size / Dimension [y] | 4.9 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FDSD0512 Series

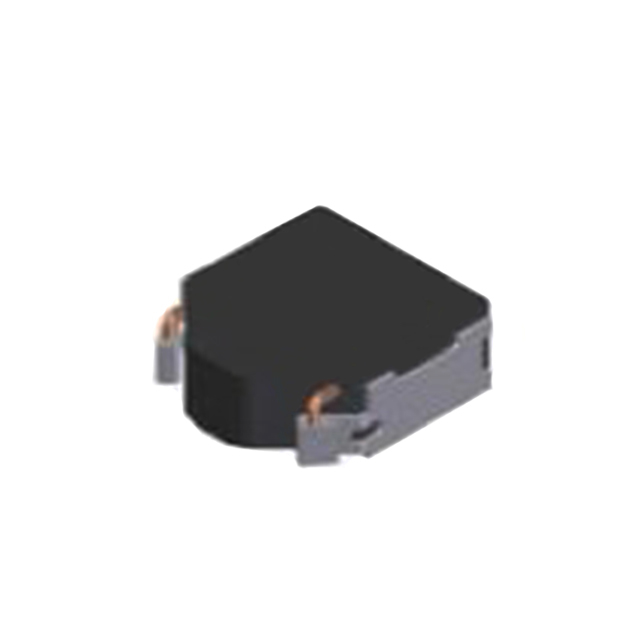

2.2 µH Shielded Drum Core, Wirewound Inductor 3.2 A 68mOhm Max Nonstandard
