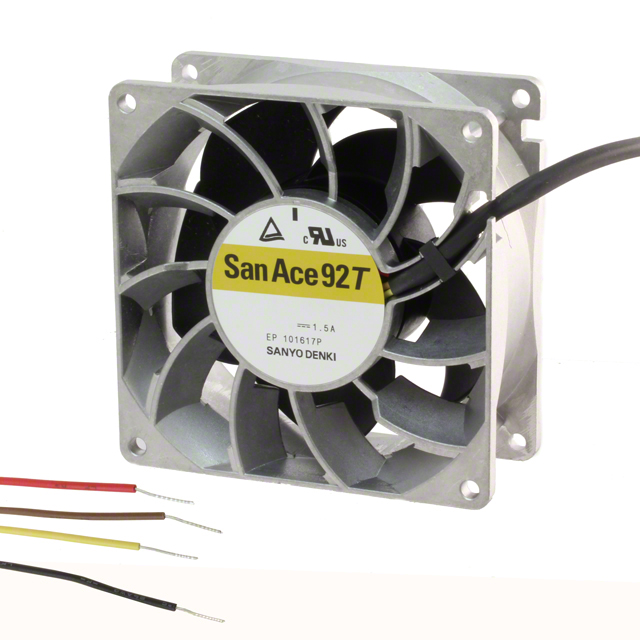

9GT0924P1M001

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GT0924P1M001

Air Flow	116.5 CFM
Air Flow	3.26 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	750 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	58 dB(A)
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	18 W
RPM	8100 RPM
Static Pressure	1.26 in H2O
Static Pressure	313.9 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	269.89 g
Weight	0.595 lb
Width [y]	38 mm

Part	Power (Watts)	Voltage - Rated	Fan Type	Lifetime @ Temp.	Noise	Bearing Type	RPM	Static Pressure	Static Pressure	Termination	Approval Agency	Air Flow	Air Flow	Weight	Weight	Current Rating (Amps)	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Features	Material - Blade	Air Flow
Sanyo Denki America Inc. 9GT0924P1M001	18 W	24 VDC	Tubeaxial	40000 Hrs	58 dB(A)	Ball	8100 RPM	1.26 in H2O	313.9 Pa	4 Wire Leads	CSA TUV UL	116.5 CFM	3.26 m³/min	269.89 g	0.595 lb	750 mA	38 mm	-40 °C	-40 °C	85 °C	85 °C	Aluminum	PWM Control Speed Sensor (Tach)	Plastic
Sanyo Denki America Inc. 9GT0924J4002	5.04 W	24 VDC	Tubeaxial	40000 Hrs	44 dB	Ball	5000 RPM	0.42 in H2O	104.6 Pa	2 Wire Leads	CSA TUV UL		2.18 m³/min	150.14 g	0.331 lb	0.21 A	25 mm	-40 °C	-40 °C	85 °C	85 °C	Aluminum		Plastic	77.7 CFM
Sanyo Denki America Inc. 9GT0924J4001	5.04 W	24 VDC	Tubeaxial	40000 Hrs	44 dB	Ball	5000 RPM	0.42 in H2O	104.6 Pa	3 Wire Leads	CSA TUV UL		2.18 m³/min	150.14 g	0.331 lb	0.21 A	25 mm	-40 °C	-40 °C	85 °C	85 °C	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	Plastic	77.7 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 116.5 CFM (3.26m³/min) 4 Wire Leads
