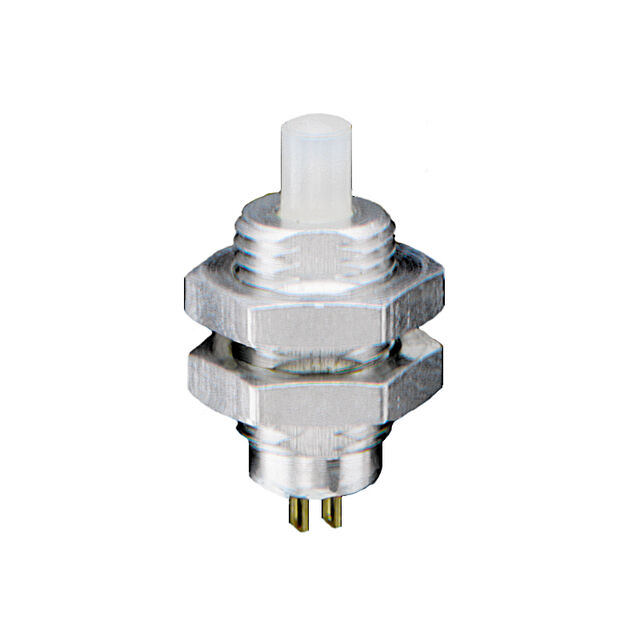

39-701-EW

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	39-701-EW

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	White
Current Rating (Amps)	150 mA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	8.61 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	115 V

Part	Actuator Marking	Voltage Rating - AC	Type	Circuit	Electrical Life	Features	Mounting Type	Switch Function	Current Rating (Amps)	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap
Grayhill Inc. 39-701-EW	No Marking	115 V	Standard	SPST-NO	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Rear	Off-Mom	150 mA	Round Plunger	Wire Leads	85 °C	-40 °C	8.61 mm	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
