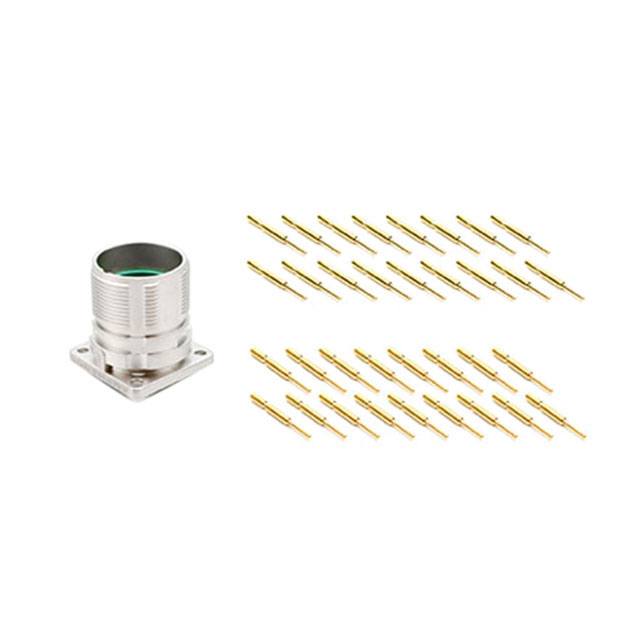

MA2LAE1700-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 17POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 17POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Shell Finish	Shell Material	Color	Orientation	Connector Type	Shell Size - Insert	Termination	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Primary Material	Number of Positions	Ingress Protection	Applications	Fastening Type	Material Flammability Rating	Number of Positions	Insert Material	Contact Material
Amphenol Sine Systems Corp MA2LAE1200-KIT	Shielded	Nickel	Zinc Die Cast	Silver	N	Male Pins Receptacle	M23-12	Crimp	10 A	160 V	Gold	-20 C	130 °C	Flange	Metal	12	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp MA2LAE1600S-KIT	Shielded	Nickel	Zinc Die Cast	Silver	E	Receptacle Female Sockets	M23-16	Crimp	9 A	125 VAC	Gold	-20 C	130 °C	Flange	Metal		IP67 - Dust Tight Waterproof	Communication Systems Industrial Medical	Push-Twist	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Copper Alloy
Amphenol Sine Systems Corp MA2LAE1700-KIT	Shielded	Nickel	Zinc Die Cast	Silver	N	Male Pins Receptacle	M23-17	Crimp	9 A	125 VAC	Gold	-20 C	130 °C	Flange	Metal		IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp MA2LAE1700S-KIT	Shielded	Nickel	Zinc Die Cast	Silver	N	Receptacle Female Sockets	M23-17	Crimp	9 A	125 VAC	Gold	-20 C	130 °C	Flange	Metal		IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Receptacle, Male Pins Crimp
