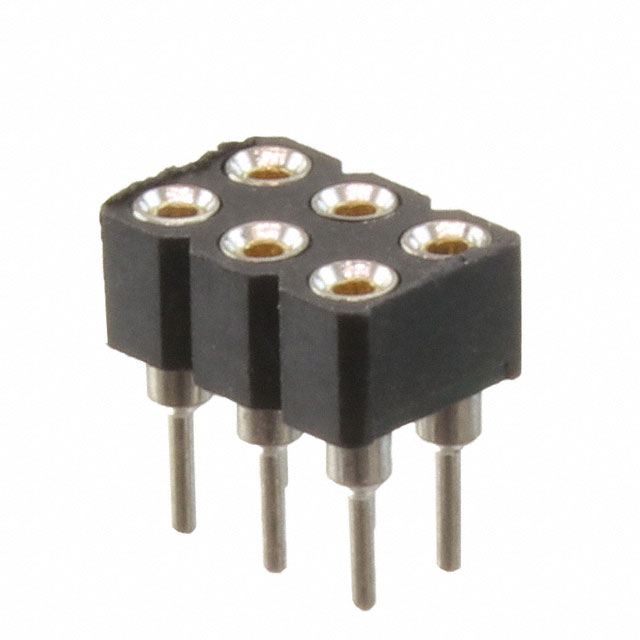

SMC-2-06-1-GT

Active

Adam Tech

CONN SOCKET STRIP SKT 6 POS 2.54MM SOLDER ST THRU-HOLE

Search across all available documentation for this part.

Active

Adam Tech

CONN SOCKET STRIP SKT 6 POS 2.54MM SOLDER ST THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	SMC-2-06-1-GT

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	100 V, 150 VDC

Part	Pitch - Mating	Pitch - Mating	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Post	Material Flammability Rating	Number of Positions	Contact Type	Fastening Type	Termination	Contact Material	Contact Shape	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating	Insulation Material	Insulation Color
Adam Tech SMC-2-06-1-GT	0.1 in	2.54 mm	2	2.54 mm	0.1 in	All	Gold	Flash	Socket	Tin	UL94 V-0	6	Female Socket	Push-Pull	Solder	Copper Alloy	Circular	3 A	-55 °C	125 °C	Through Hole	100 V 150 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Black
