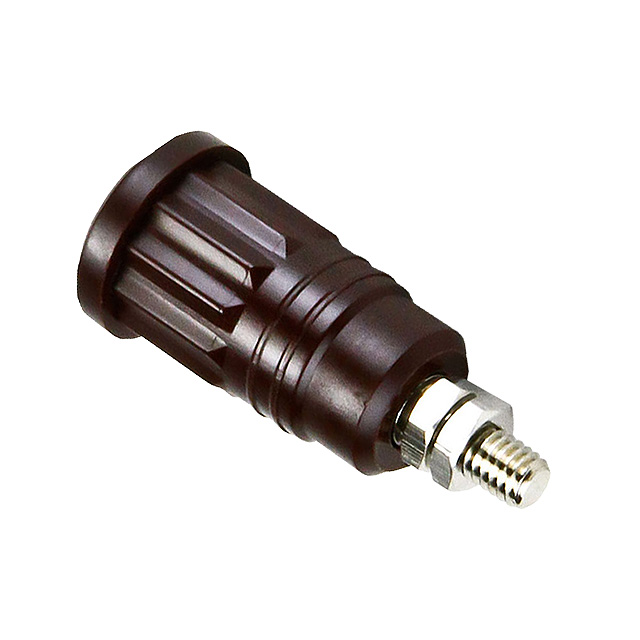

CT2243-1

Active

Cal Test Electronics

CONN BANANA JACK THRD BROWN

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK THRD BROWN

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Gender	Body Material	Contact Finish	Plug/Mating Plug Diameter	Insulation	Contact Material	Type	Color	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT2243-9	Threaded External (Nut)	Female	Nylon Polyamide (PA)	Nickel	Standard Banana	Mating End Insulated	Brass	Banana Jack	White	-20 C	80 C
Cal Test Electronics CT2243-4	Threaded External (Nut)	Female	Nylon Polyamide (PA)	Nickel	Standard Banana	Mating End Insulated	Brass	Banana Jack	Yellow	-20 C	80 C
Cal Test Electronics CT2243-0	Threaded External (Nut)	Female	Nylon Polyamide (PA)	Nickel	Standard Banana	Mating End Insulated	Brass	Banana Jack	Black	-20 C	80 C
Cal Test Electronics CT2243-6	Threaded External (Nut)	Female	Nylon Polyamide (PA)	Nickel	Standard Banana	Mating End Insulated	Brass	Banana Jack	Blue	-20 C	80 C
Cal Test Electronics CT2243-1	Threaded External (Nut)	Female	Nylon Polyamide (PA)	Nickel	Standard Banana	Mating End Insulated	Brass	Banana Jack	Brown	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.35

General part information

Banana Jack Connector Standard Banana Threaded, External (Nut) Brown
