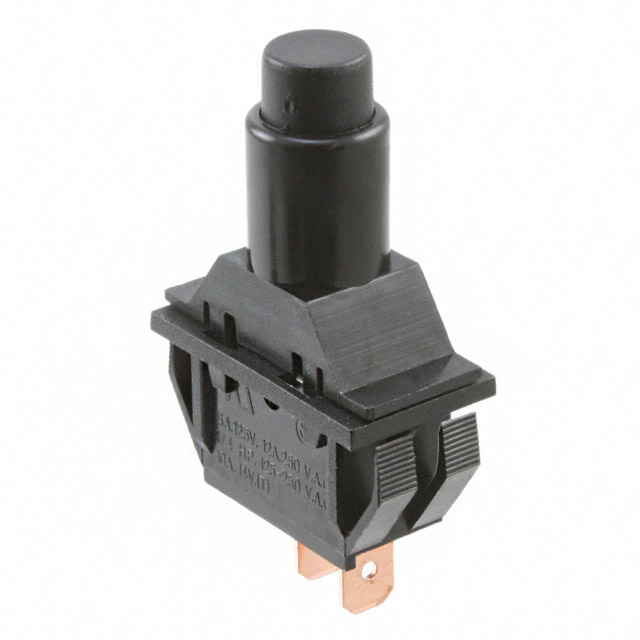

GRSN-2011-2002

Active

CW Industries

SPST 125V ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

CW Industries

SPST 125V ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Circuit	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Actuator Marking	Actuator Type	Features	Electrical Life	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]
CW Industries GRSN-2011-3005	12.19 mm	27.23 mm	Panel Mount Snap-In	SPST	10 A 16 A	Black	On-Off	125 V	Solder Hook	14 V	No Marking	Concave (Curved)
CW Industries GRSN-2011-2002			Panel Mount Snap-In	SPST	16 A	Black	On-Off	125 V	Quick Connect - 0.250" (6.3mm)		No Marking	Round	Push Off Switch Push On	6000 Cycles	100000 Cycles	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
