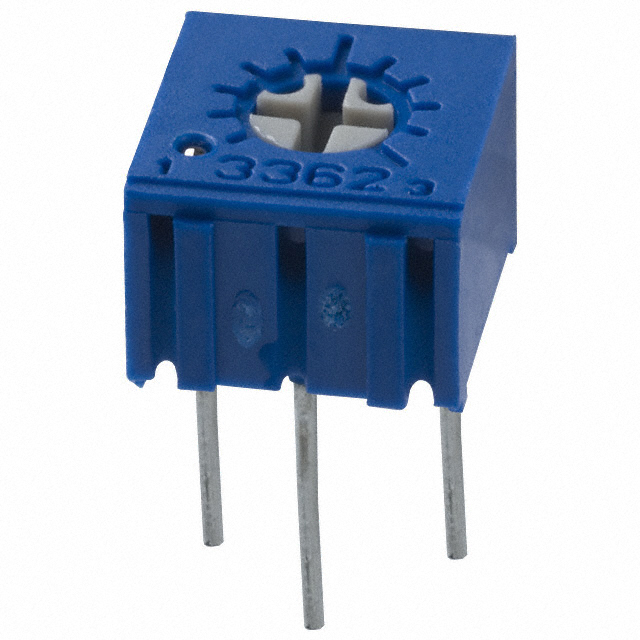

3362R-1-304LF

Active

Bourns Inc.

TRIMMER 300K OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 300K OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Temperature Coefficient	Termination Style	Power (Watts)	Power (Watts)	Mounting Type	Number of Turns	Adjustment Type	Resistance	Resistive Material
Bourns Inc. 3362R-1-304LF	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	300 kOhms	Cermet
Bourns Inc. 3362R-1-304	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	300 kOhms	Cermet
Bourns Inc. 3362R-1-503	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	50 kOhms	Cermet
Bourns Inc. 3362R-1-222LF	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	2200 Ohms	Cermet
Bourns Inc. 3362R-1-502	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	5 kOhms	Cermet
Bourns Inc. 3362R-1-473	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	47 kOhms	Cermet
Bourns Inc. 3362R-1-100LF	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	10 Ohms	Cermet
Bourns Inc. 3362R-1-502LF	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	5 kOhms	Cermet
Bourns Inc. 3362R-1-254	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	250 kOhms	Cermet
Bourns Inc. 3362R-1-105LF	6.6 mm	0.275 in	6.99 mm	0.26 "	10 %	100 ppm/°C	PC Pins	0.5 W	0.5 W	Through Hole	1	Top Adjustment	1 MOhms	Cermet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

300 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
