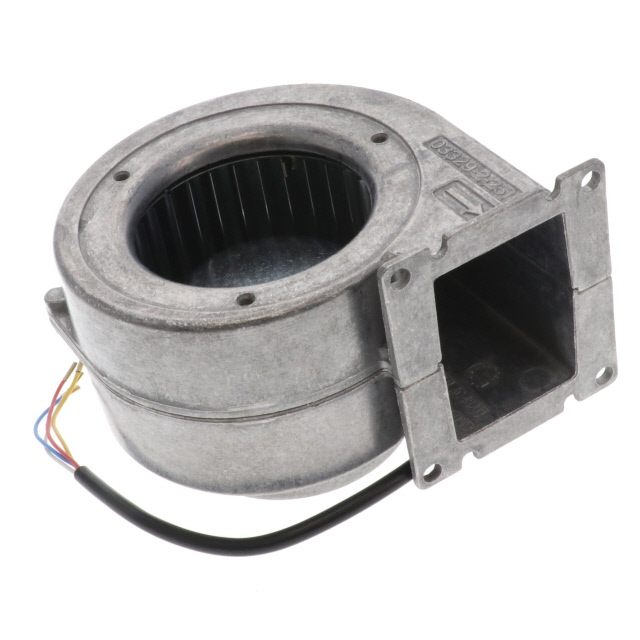

G1G085-AB05-01

Obsolete

ebm-papst Inc.

DC BLOWER CENTRIFUGAL BALL BEARING 24V 16V TO 28V

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

DC BLOWER CENTRIFUGAL BALL BEARING 24V 16V TO 28V

Technical Specifications

Parameters and characteristics for this part

Specification	G1G085-AB05-01

Approval Agency	EAC
Bearing Type	Ball
Fan Type	Blower
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP22
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	14 Watts
RPM	2850 RPM
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC

Part	Ingress Protection	Fan Type	Voltage - Rated	Material - Frame	RPM	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Bearing Type	Termination
ebm-papst Inc. G1G085-AB05-01	IP22	Blower	24 VDC	Aluminum	2850 RPM	EAC	14 Watts	-25 °C	60 °C	PWM Control Speed Sensor (Tach)	16 VDC	28 VDC	Steel	Ball	4 Wire Leads with Splice Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 117.5mm L x 127.5mm H Ball 4 Wire Leads with Splice Terminals
