IS15EBFP4RGB

Active

NKK Switches

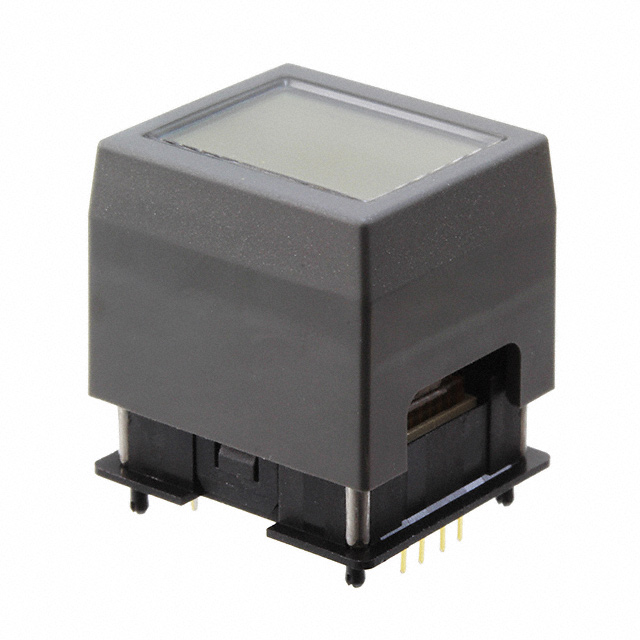

PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, IS SERIES, SPDT, THROUGH HOLE, 100 MA, 12 V, LCD

Search across all available documentation for this part.

Active

NKK Switches

PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, IS SERIES, SPDT, THROUGH HOLE, 100 MA, 12 V, LCD

Technical Specifications

Parameters and characteristics for this part

Specification	IS15EBFP4RGB

Circuit	SPST-NO
Contact Rating @ Voltage	0.1 A, 12 VDC
Display Mode	Black and White, FSTN Positive
Face Size [x]	23.13 mm
Face Size [y]	20.59 mm
LED Color	Blue, Green, Red
LED Forward Voltage	2.8, 2.8 VDC, 2
Mounting Type	Through Hole
Operating Force	204 gf
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-15 °C
Pixel Format [x]	64
Pixel Format [y]	32
Style	High Resolution, Standard
Supply Voltage [Max]	5.1 VDC
Supply Voltage [Min]	4.9 VDC
Switch Function	Off-Mom
Termination Style	PC Pin
Travel Range	4.5 mm
Type	LCD, Pushbutton
Viewing Area [x]	17 mm
Viewing Area [y]	13 mm

Part	Type	Display Mode	Operating Temperature [Min]	Operating Temperature [Max]	Travel Range	LED Color	Pixel Format [x]	Pixel Format [y]	Switch Function	Contact Rating @ Voltage	Operating Force	Termination Style	Face Size [y]	Face Size [x]	Style	Circuit	LED Forward Voltage	Viewing Area [y]	Viewing Area [x]	Supply Voltage [Min]	Supply Voltage [Max]	Mounting Type
NKK Switches IS15EBFP4RGB	LCD Pushbutton	Black and White FSTN Positive	-15 °C	50 °C	4.5 mm	Blue Green Red	64	32	Off-Mom	0.1 A 12 VDC	204 gf	PC Pin	20.59 mm	23.13 mm	High Resolution Standard	SPST-NO	2 2.8 2.8 VDC	13 mm	17 mm	4.9 VDC	5.1 VDC	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable Display Switch Pushbutton, LCD SPST-NO 0.1A @ 12VDC Through Hole
