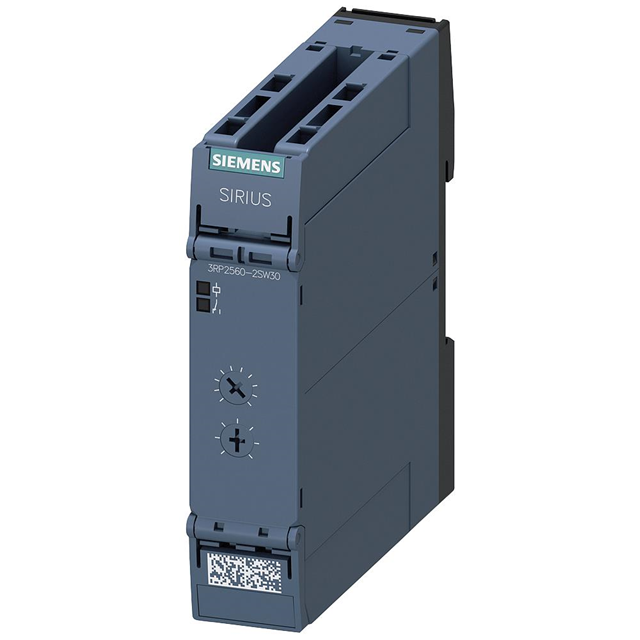

3RP25602SW30
ActiveSiemens
RELAY TIME DELAY 20SEC 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3RP25602SW30
ActiveSiemens
RELAY TIME DELAY 20SEC 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RP25602SW30 |
|---|---|
| Circuit | 3PST-NO (3 Form A) |
| Contact Rating @ Voltage | 250 VAC, 3 A |
| Delay Time [Max] | 20 s |
| Delay Time [Min] | 1 Sec |
| Function | Star Delta Controller |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 12 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 231.09 | |
Description
General part information
3RP2560 Series
Star Delta Controller Time Delay Relay 3PST-NO (3 Form A) 1 Sec ~ 20 Sec Delay 3A @ 250VAC DIN Rail
