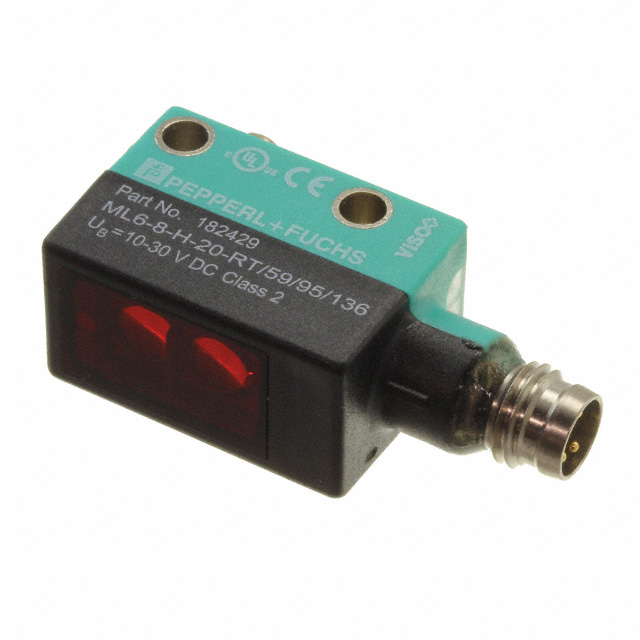

ML6-8-H-20-RT/59/95/136
ObsoletePEPPERL+FUCHS
PHOTO SEN 7-20MM BACK SUPPRESS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ML6-8-H-20-RT/59/95/136
ObsoletePEPPERL+FUCHS
PHOTO SEN 7-20MM BACK SUPPRESS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ML6-8-H-20-RT/59/95/136 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M8 |
| Ingress Protection | IP67, IP69K |
| Light Source | Red LED |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | Light-On/Dark-On |
| Response Time | 500 µs |
| Sensing Distance [Max] | 0.787 in |
| Sensing Distance [Max] | 20 mm |
| Sensing Distance [Min] | 7 mm |
| Sensing Distance [Min] | 0.276 " |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 310.08 | |
| 5 | $ 298.66 | |||
| 10 | $ 285.60 | |||
| 25 | $ 270.92 | |||
| 50 | $ 231.75 | |||
Description
General part information
ML6-8 Series
Diffuse Optical Sensor 0.276" ~ 0.787" (7mm ~ 20mm) Light-On/Dark-On
