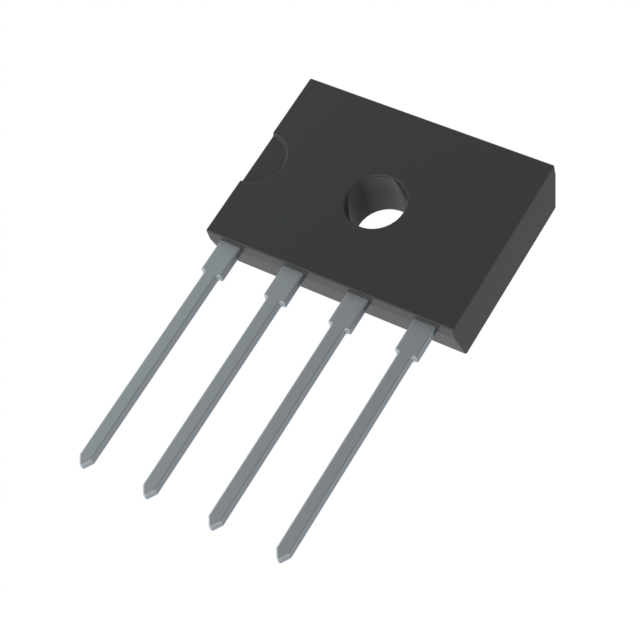

DXK810_T0_00001

Active

Panjit International Inc.

DXK,GLASS PASSIVATED BRIDGE RECT

Search across all available documentation for this part.

Active

Panjit International Inc.

DXK,GLASS PASSIVATED BRIDGE RECT

Technical Specifications

Parameters and characteristics for this part

Specification	DXK810_T0_00001

Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP
Supplier Device Package	DXK
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Package / Case	Supplier Device Package	Technology	Diode Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]
Panjit International Inc. DXK810_T0_00001	4-SIP	DXK	Standard	Single Phase	5 µA	8 A	Through Hole	1000 V	1.05 V	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole DXK
