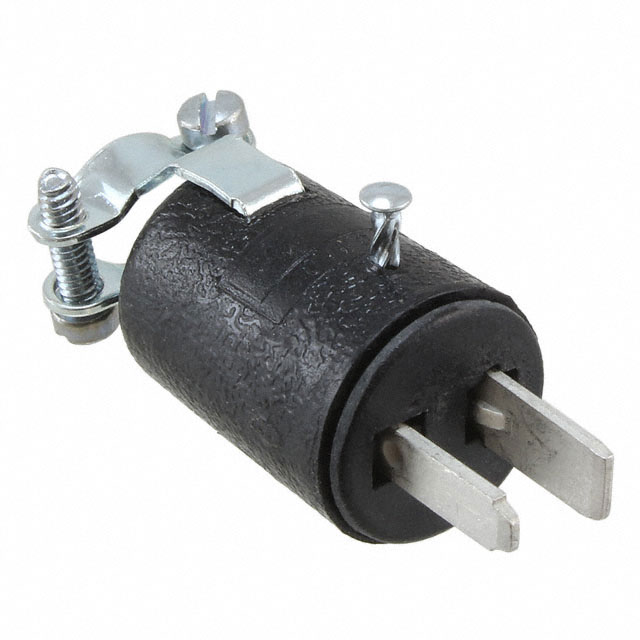

P-302H-CCT

Obsolete

Cinch Connectivity Solutions Trompeter

CONN PLUG 2POS IN-LINE SLDR

Search across all available documentation for this part.

Obsolete

Cinch Connectivity Solutions Trompeter

CONN PLUG 2POS IN-LINE SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	P-302H-CCT

Color	Black
Connector Type	Plug, Jones
Contact Finish	Tin
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Cable Clamp, Hood
Material - Insulation	Phenol Formaldehyde (Phenolic)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature	105 C
Termination	Solder Eyelet(s)
Voltage Rating	250 VDC

Part	Number of Rows	Voltage Rating	Color	Current Rating (Amps)	Mounting Type	Contact Material	Features	Material - Insulation	Contact Finish	Connector Type	Termination	Fastening Type	Number of Positions	Operating Temperature
Cinch Connectivity Solutions Trompeter P302CCT	1	250 VDC	Black	10 A	Free Hanging (In-Line)	Brass	Cable Clamp Hood	Phenol Formaldehyde (Phenolic)	Cadmium	Plug Jones	Solder Eyelet(s)	Push-Pull	2	105 C
Cinch Connectivity Solutions Trompeter P-302H-CCTL	1	250 VDC	Black	10 A	Free Hanging (In-Line)	Brass	Cable Clamp Hood	Phenol Formaldehyde (Phenolic)	Tin	Plug Jones	Solder Eyelet(s)	Latch Lock	2	105 C
Cinch Connectivity Solutions Trompeter P-302H-CCT	1	250 VDC	Black	10 A	Free Hanging (In-Line)	Brass	Cable Clamp Hood	Phenol Formaldehyde (Phenolic)	Tin	Plug Jones	Solder Eyelet(s)	Push-Pull	2	105 C
Cinch Connectivity Solutions Trompeter P-302H-AB	1	250 VDC	Black	10 A		Brass	Flange	Phenol Formaldehyde (Phenolic)	Tin	Plug Jones	Solder Eyelet(s)	Push-Pull	2	105 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Plug, Jones Connector Solder Eyelet(s) Free Hanging (In-Line)
