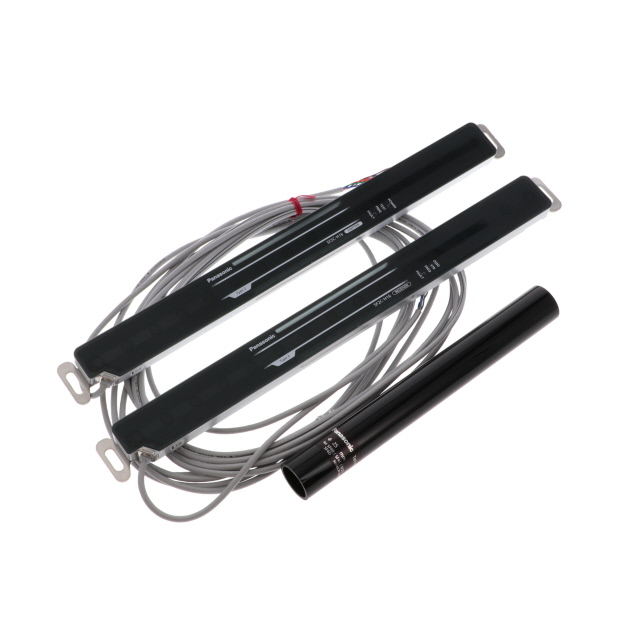

SF2C-H16-N

Active

Panasonic Industrial Automation Sales

LIGHT CURTAIN HAND 25MM

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

LIGHT CURTAIN HAND 25MM

Technical Specifications

Parameters and characteristics for this part

Specification	SF2C-H16-N

Beam Pitch	20 mm
Detection Capability	25 mm
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Beams	16
Operating Range [Max]	3 m
Operating Range [Min]	0.1 m
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Protection	Hand
Protective Height [z]	320 mm
Voltage - Supply	24 VDC

Part	Operating Range [Min]	Operating Range [Max]	Detection Capability	Ingress Protection	Beam Pitch	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage - Supply	Protection	Protective Height [z]	Number of Beams [custom]	Number of Beams	Protective Height
Panasonic Industrial Automation Sales SF2C-H12-N	0.1 m	3 m	25 mm	IP67 - Dust Tight Waterproof	20 mm	55 °C	-10 °C	24 VDC	Hand	240 mm	12
Panasonic Industrial Automation Sales SF2C-H20-P	0.1 m	3 m	25 mm	IP67 - Dust Tight Waterproof	20 mm	55 °C	-10 °C	24 VDC	Hand	400 mm	20
Panasonic Industrial Automation Sales SF2C-H16-N	0.1 m	3 m	25 mm	IP67 - Dust Tight Waterproof	20 mm	55 °C	-10 °C	24 VDC	Hand	320 mm		16
Panasonic Industrial Automation Sales SF2C-H20-N	0.1 m	3 m	25 mm	IP67 - Dust Tight Waterproof	20 mm	55 °C	-10 °C	24 VDC	Hand	400 mm	20
Panasonic Industrial Automation Sales SF2C-H24-N	0.1 m	3 m	25 mm	IP67 - Dust Tight Waterproof	20 mm	55 °C	-10 °C	24 VDC	Hand	480 mm	24
Panasonic Industrial Automation Sales SF2C-H32-P	0.1 m	3 m	25 mm	IP67 - Dust Tight Waterproof	20 mm	55 °C	-10 °C	24 VDC	Hand			32	640 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Light Curtain 25mm Hand
