A11CSP24VDC1.5

Active

CIT Relay and Switch

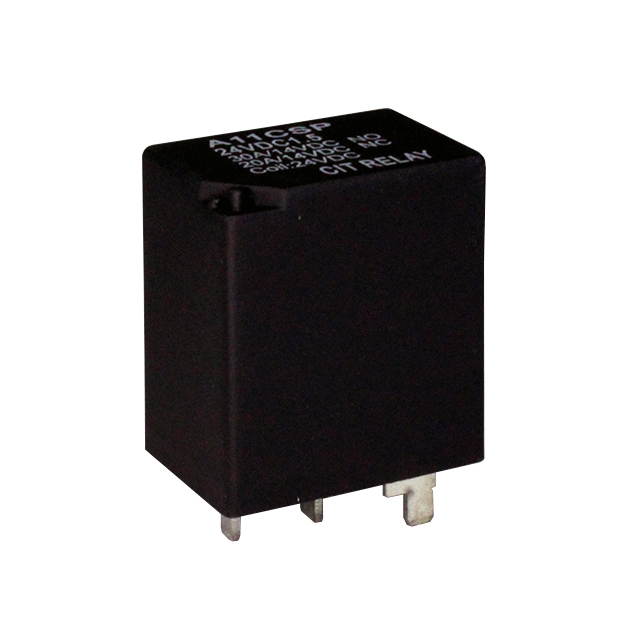

RELAY AUTOMOTIVE SPDT 30A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Relays

A11CSP24VDC1.5

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 30A 24V

Deep-Dive with AI

DocumentsDatasheet A Series Relays

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A11CSP24VDC1.5

Coil Current	62.5 mA
Coil Power	1.5 W
Coil Resistance	384 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A
Features	Sealed - Fully
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	7 ms
Switching Voltage	75 VDC
Termination Style	PC Pin

A11CSP Series

Part	Must Operate Voltage	Coil Voltage	Contact Material	Coil Current	Must Release Voltage	Coil Power	Contact Form	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Termination Style	Coil Type	Contact Rating (Current)	Features	Coil Resistance	Release Time	Mounting Type
CIT Relay and Switch A11CSP12VDC1.2R	8.4 VDC	12 VDC	Silver Tin Oxide (AgSnO)	100 mA	1.2 VDC	1.2 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Resistor Sealed - Fully	120 Ohms	7 ms	Through Hole
CIT Relay and Switch A11CSP12VDC1.5R	8.4 VDC	12 VDC	Silver Tin Oxide (AgSnO)	125 mA	1.2 VDC	1.5 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Resistor Sealed - Fully	96 Ohms	7 ms	Through Hole
CIT Relay and Switch A11CSP12VDC1.5D	8.4 VDC	12 VDC	Silver Tin Oxide (AgSnO)	125 mA	1.2 VDC	1.5 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Diode Sealed - Fully	96 Ohms	7 ms	Through Hole
CIT Relay and Switch A11CSP24VDC1.2R	18 VDC	24 VDC	Silver Tin Oxide (AgSnO)	50 mA	2.4 VDC	1.2 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Resistor Sealed - Fully	480 Ohms	7 ms	Through Hole
CIT Relay and Switch A11CSP24VDC1.5	18 VDC	24 VDC	Silver Tin Oxide (AgSnO)	62.5 mA	2.4 VDC	1.5 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Sealed - Fully	384 Ohms	7 ms	Through Hole
CIT Relay and Switch A11CSP24VDC1.2D	18 VDC	24 VDC	Silver Tin Oxide (AgSnO)	50 mA	2.4 VDC	1.2 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Diode Sealed - Fully	480 Ohms	7 ms	Through Hole
CIT Relay and Switch A11CSP24VDC1.5R	18 VDC	24 VDC	Silver Tin Oxide (AgSnO)	62.5 mA	2.4 VDC	1.5 W	SPDT (1 Form C)	75 VDC	85 °C	-40 °C	10 ms	PC Pin	Non Latching	30 A	Resistor Sealed - Fully	384 Ohms	7 ms	Through Hole
