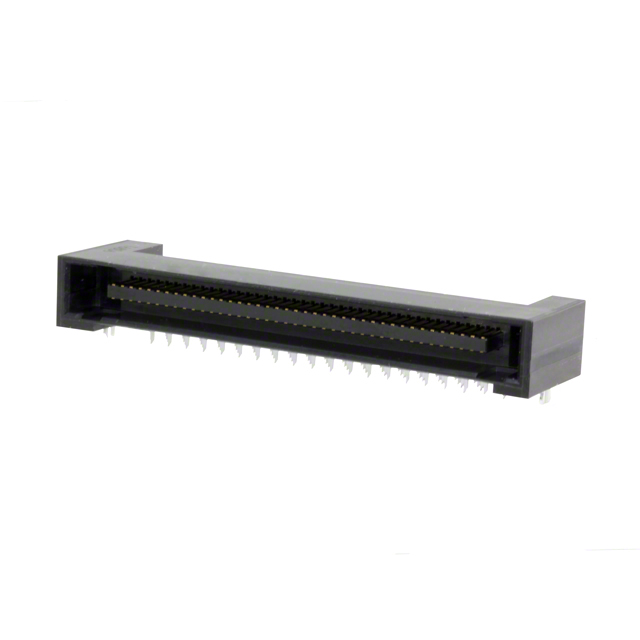

TX25A-80P-LT-H1E
ActiveJAE Electronics
CONN PLUG 80POS R/A GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25A-80P-LT-H1E |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board | 9 mm |
| Height Above Board | 0.354 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.84 | |
| 10 | $ 7.55 | |||
| 25 | $ 6.82 | |||
| 40 | $ 6.47 | |||
| 80 | $ 6.01 | |||
| 230 | $ 5.39 | |||
| 440 | $ 5.05 | |||
| 945 | $ 4.69 | |||
Description
General part information
TX25A-80 Series
80 Position Connector Plug, Center Strip Contacts Through Hole, Right Angle Gold
