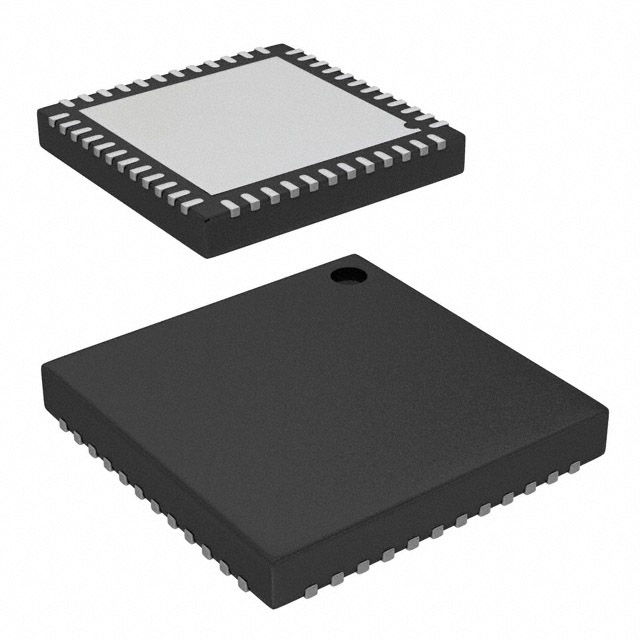

NRF24LE1-F16Q48-R

Active

Nordic Semiconductor ASA

IC RF TXRX+MCU ISM>1GHZ 48QFN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NRF24LE1-F16Q48-R

Current - Receiving [Max]	13.3 mA
Current - Receiving [Min]	12.4 mA
Current - Transmitting [Max]	11.1 mA
Current - Transmitting [Min]	6.8 mA
Data Rate (Max)	2 Mbps
Frequency	2.4 GHz
GPIO	31
Memory Size	16 kB, 1 kB
Modulation	GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	48-VFQFN Exposed Pad
Power - Output	0 dBm
RF Family/Standard	General ISM > 1GHz
Sensitivity	-94 dBm
Serial Interfaces	I2C, JTAG, UART, SPI
Supplier Device Package	48-QFN (7x7)
Type	TxRx + MCU
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.9 V

NRF24 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Supplier Device Package	Data Rate (Max)	Package / Case	Current - Transmitting [Min]	Current - Transmitting [Max]	Frequency	Type	Power - Output	Mounting Type	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	GPIO	Current - Receiving [Min]	Current - Receiving [Max]	Modulation	Sensitivity	RF Family/Standard	Current - Receiving	Protocol	Memory Size [custom]	Memory Size [custom]	Current - Transmitting	For Use With/Related Products	Supplied Contents
Nordic Semiconductor ASA NRF24LE1-O17Q24-R	85 °C	-40 °C	1 kB 16 kB	24-QFN (4x4)	2 Mbps	24-VFQFN Exposed Pad	6.8 mA	11.1 mA	2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	I2C SPI UART	3.6 V	1.9 V	7	12.4 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz
Nordic Semiconductor ASA NRF24AP2-8CHQ32-T	85 °C	-40 °C		32-QFN (5x5)	1 Mbps	32-VFQFN Exposed Pad	11 mA	15 mA	2.4 GHz	TxRx Only	0 dBm	Surface Mount	USART	3.6 V	1.9 V				GFSK	-85 dBm	General ISM > 1GHz	17 mA	ANT™
Nordic Semiconductor ASA NRF24LE1-F16Q48-R	85 °C	-40 °C	1 kB 16 kB	48-QFN (7x7)	2 Mbps	48-VFQFN Exposed Pad	6.8 mA	11.1 mA	2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	I2C JTAG SPI UART	3.6 V	1.9 V	31	12.4 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz
Nordic Semiconductor ASA NRF24LE1-O17Q24-R7	85 °C	-40 °C	1 kB 16 kB	24-QFN (4x4)	2 Mbps	24-VFQFN Exposed Pad	6.8 mA	11.1 mA	2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	I2C SPI UART	3.6 V	1.9 V	7	12.4 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz
Nordic Semiconductor ASA NRF24LE1-F16Q32-R7	85 °C	-40 °C	1 kB 16 kB	32-QFN (5x5)	2 Mbps	32-VFQFN Exposed Pad	6.8 mA	11.1 mA	2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	I2C JTAG SPI UART	3.6 V	1.9 V	15	12.4 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz
Nordic Semiconductor ASA NRF24LE1-F16Q32-T	85 °C	-40 °C	1 kB 16 kB	32-QFN (5x5)	2 Mbps	32-VFQFN Exposed Pad	6.8 mA	11.1 mA	2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	I2C JTAG SPI UART	3.6 V	1.9 V	15	12.4 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz
Nordic Semiconductor ASA NRF24LU1P-F16Q32-T	85 °C	-40 °C		32-QFN (5x5)	2 Mbps	32-VFQFN Exposed Pad			2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	SPI UART USB			6	12.9 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz			16 kB	2 kB	11.1 mA
Nordic Semiconductor ASA NRF24L01P-UPGRADE									2.4 GHz	Transceiver																	nRF24L01+	Board(s)
Nordic Semiconductor ASA NRF24LU1P-F32Q32-T	85 °C	-40 °C	2 kB 32 kB	32-QFN (5x5)	2 Mbps	32-VFQFN Exposed Pad			2.4 GHz	TxRx + MCU	0 dBm	Surface Mount	SPI UART USB			6	12.9 mA	13.3 mA	GFSK	-94 dBm	General ISM > 1GHz					11.1 mA
Nordic Semiconductor ASA NRF24L01P-R7	85 °C	-40 °C		20-QFN (4x4)	2 Mbps	20-VFQFN Exposed Pad	7 mA	11.3 mA	2.4 GHz	TxRx Only	0 dBm	Surface Mount	SPI	3.6 V	1.9 V		12.6 mA	13.5 mA	GFSK	-94 dBm	General ISM > 1GHz
