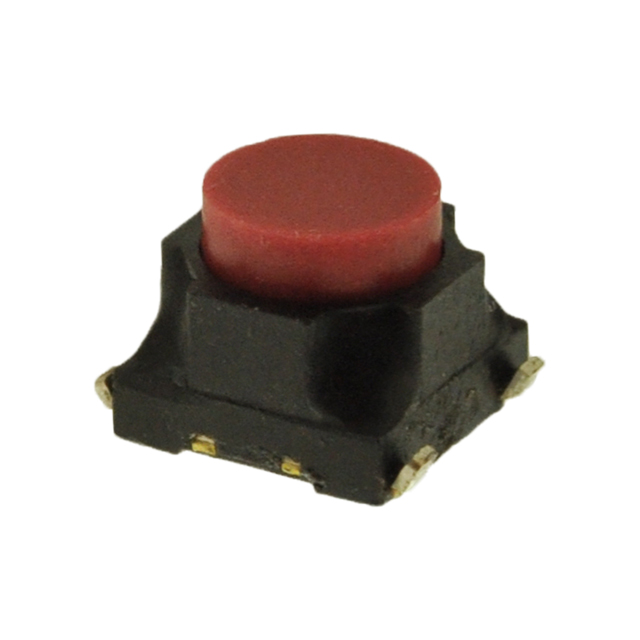

TL9100AF200Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TL9100AF200Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TL9100AF200Q |
|---|---|
| Actuator Height off PCB, Vertical | 5 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Round Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 200 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1.3 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.25 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 1.33 | |||
| 25 | $ 1.25 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.99 | |||
| Tape & Reel (TR) | 900 | $ 0.92 | ||
| 1800 | $ 0.85 | |||
| 2700 | $ 0.77 | |||
| 6300 | $ 0.72 | |||
Description
General part information
TL9100 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
