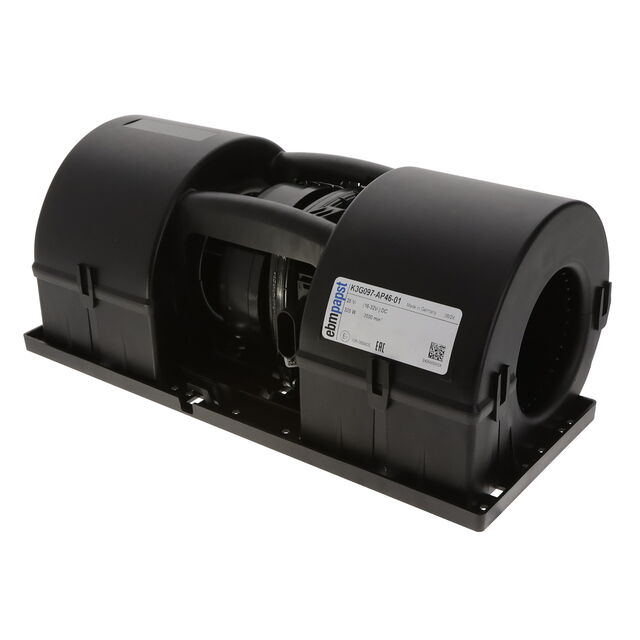

K3G097-AP46-01
Activeebm-papst Inc.
BLOWERS & CENTRIFUGAL FANS EC CENTRIFUGAL FAN COMBO, 351X170X139.3MM, 26VDC, 705CFM, 320W, 3500RPM, BALL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K3G097-AP46-01
Activeebm-papst Inc.
BLOWERS & CENTRIFUGAL FANS EC CENTRIFUGAL FAN COMBO, 351X170X139.3MM, 26VDC, 705CFM, 320W, 3500RPM, BALL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K3G097-AP46-01 |
|---|---|
| Air Flow | 8.25 m³/min |
| Air Flow | 294.5 CFM |
| Approval Agency | EAC |
| Bearing Type | Ball |
| Current Rating (Amps) | 12.2 A |
| Fan Type | Blower, Centrifugal (Dual) |
| Features | Locked Rotor Protection, Thermal Overload Protector (TOP), PWM Control |
| Material - Blade | Polyamide (PA), Nylon |
| Material - Frame | Polypropylene (PP) |
| Noise | 70 dB(A) |
| Power (Watts) | 320 W |
| RPM | 3500 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 139.5 mm |
| Size / Dimension [y] | 170.5 mm |
| Static Pressure | 2.377 in H2O |
| Static Pressure | 592 Pa |
| Termination | 4 Position Rectangular Connector |
| Voltage - Rated | 26 VDC |
| Voltage Range [Max] | 32 VDC |
| Voltage Range [Min] | 16 VDC |
| Width [x] | 351 mm |
K3G097 Series
| Part | Width [x] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Features | Fan Type | Material - Frame | Bearing Type | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Air Flow | Air Flow | Voltage - Rated | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Approval Agency | Termination | RPM | Weight | Weight | Width [y] | Noise | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | 351 mm | 394 W | 170.5 mm | 139.5 mm | Rectangular/Rounded | Locked Rotor Protection PWM Control Thermal Overload Protector (TOP) | Blower Centrifugal (Dual) | Polypropylene (PP) | Ball | 70 °C | 70 °C | -40 °C | -40 °C | 11.63 mł/min | 415.2 CFM | 26 VDC | Nylon Polyamide (PA) | 15.2 A | 16 VDC | 32 VDC | EAC | 6 Position Rectangular Connector | 3830 RPM | ||||||
ebm-papst Inc. | 163.5 mm | 144.3 mm | Rectangular/Rounded | Locked Rotor Protection PWM Control Thermal Overload Protector (TOP) | Blower Centrifugal (Dual) | Polypropylene (PP) | Ball | 85 °C | 85 °C | -40 °C | -40 °C | 18.54 mł/min | 662.1 CFM | 26 VDC | Nylon Polyamide (PA) | 11.8 A | 16 VDC | 32 VDC | EAC | 3600 RPM | 2 kg | 4.5 lbs | 335 mm | 79 dB(A) | |||||
ebm-papst Inc. | 351 mm | 690 W | 170.5 mm | 139.5 mm | Rectangular/Rounded | Locked Rotor Protection PWM Control Thermal Overload Protector (TOP) | Blower Centrifugal (Dual) | Nylon Polyamide (PA) | Ball | 60 °C | 60 °C | -40 °C | -40 °C | 12.37 m³/min | 441.8 CFM | 26 VDC | Nylon Polyamide (PA) | 26.5 A | 16 VDC | 32 VDC | EAC | 4 Position Rectangular Connector | 4600 RPM | 75 dB(A) | |||||
ebm-papst Inc. | 351 mm | 320 W | 170.5 mm | 139.5 mm | Rectangular/Rounded | Locked Rotor Protection PWM Control Thermal Overload Protector (TOP) | Blower Centrifugal (Dual) | Polypropylene (PP) | Ball | 8.25 m³/min | 294.5 CFM | 26 VDC | Nylon Polyamide (PA) | 12.2 A | 16 VDC | 32 VDC | EAC | 4 Position Rectangular Connector | 3500 RPM | 70 dB(A) | 2.377 in H2O | 592 Pa |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
K3G097 Series
Fan Blower, Centrifugal (Dual) 26VDC Rectangular/Rounded - 139.5mm L x 170.5mm H Ball 294.5 CFM (8.25m³/min) 4 Position Rectangular Connector
