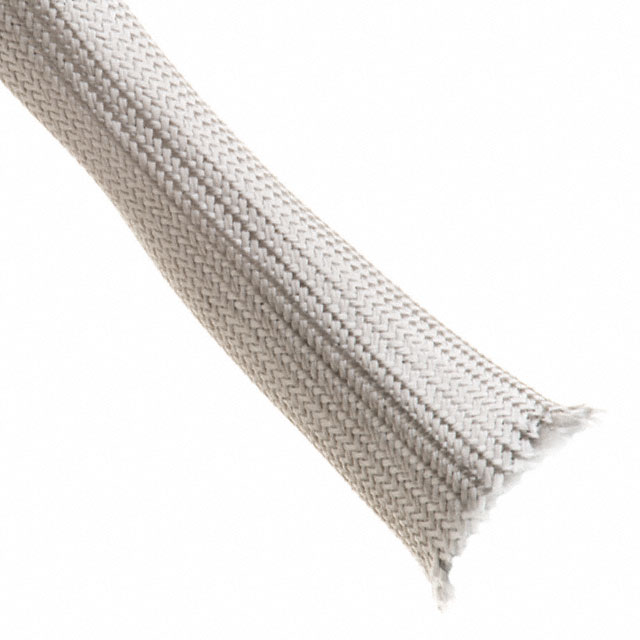

FHN0.63NT50

Active

Techflex

EXPAND SLEEVING 5/8" X 50' NAT

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 5/8" X 50' NAT

Technical Specifications

Parameters and characteristics for this part

Specification	FHN0.63NT50

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	0.75 in
Diameter - Inside, Expanded [diameter]	19.05 mm
Diameter - Inside, Non-Expanded [diameter]	15.88 mm
Diameter - Inside, Non-Expanded [diameter]	0.625 in
Features	Clean Cut, Vibration Resistant
Heat Protection	Heat Resistant
Length	15.24 m
Length [x]	50 ft
Material	Fiberglass, Halogen Free
Material Flammability Rating	UL VW-1
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.024 in
Wall Thickness	0.61 mm

Part	Length [x]	Length [x]	Color	Heat Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Material Flammability Rating	Material	Features	Type	Abrasion Protection	Wall Thickness	Wall Thickness	Length	Length
Techflex FHN0.38NT250	76.2 m	250 ft	Natural	Heat Resistant	0.375 in	9.53 mm	12.7 mm	0.5 in	Expandable	UL VW-1	Fiberglass Halogen Free	Clean Cut Vibration Resistant	Sleeve	Abrasion Resistant	0.012 in	0.3 mm
Techflex FHN0.38NT100			Natural	Heat Resistant	0.375 in	9.53 mm	12.7 mm	0.5 in	Expandable	UL VW-1	Fiberglass Halogen Free	Clean Cut Vibration Resistant	Sleeve	Abrasion Resistant	0.012 in	0.3 mm	100 ft	30.48 m
Techflex FHN0.63NT50		50 ft	Natural	Heat Resistant	0.625 in	15.88 mm	19.05 mm	0.75 in	Expandable	UL VW-1	Fiberglass Halogen Free	Clean Cut Vibration Resistant	Sleeve	Abrasion Resistant	0.024 in	0.61 mm		15.24 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 87.57

General part information

Sleeve X 50.00' (15.24m) Natural

Technical documentation and resources
