UCC3580EVM

Obsolete

Texas Instruments

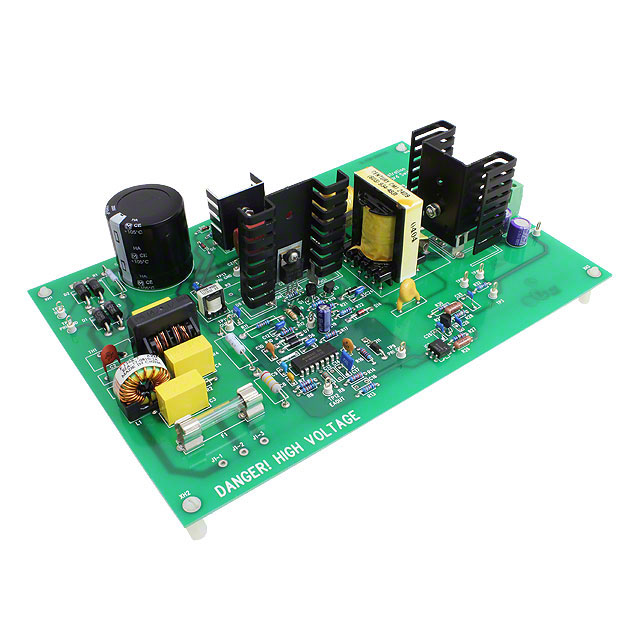

UCC3580 VOLTAGE MODE PWM CONTROLLER EVALUATION BOARD

Search across all available documentation for this part.

Obsolete

Texas Instruments

UCC3580 VOLTAGE MODE PWM CONTROLLER EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Outputs and Type	Outputs and Type	Voltage - Output	Current - Output	Regulator Topology	Main Purpose	Utilized IC / Part	Supplied Contents	Board Type
Texas Instruments UCC3580EVM	Isolated	1	12 V	10 A	Flyback	AC/DC Primary Side	UCC3580	Board(s)	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UCC3580 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board

Technical documentation and resources
