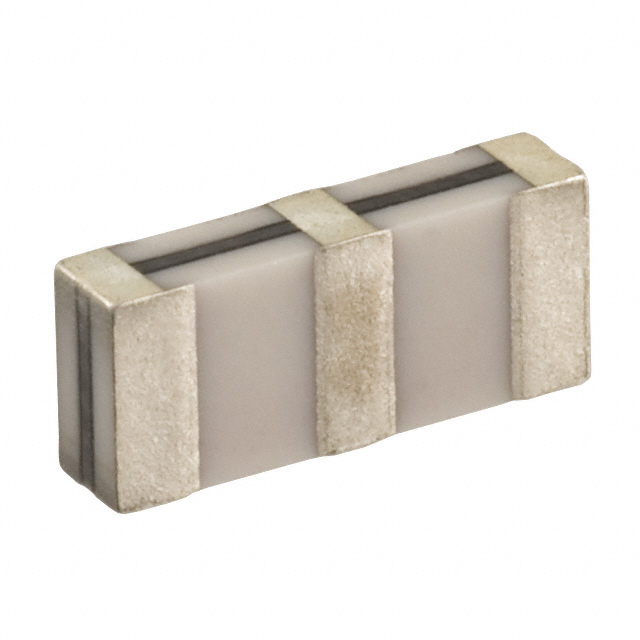

SFECV10M7KA00-R0

LTB

Murata Power Solutions Inc.

CER FILTER 10.7MHZ FM

Search across all available documentation for this part.

LTB

Murata Power Solutions Inc.

CER FILTER 10.7MHZ FM

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Insertion Loss	Height (Max) [Max]	Height (Max) [Max]	Filter Type	Impedance	Frequency	Bandwidth	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type
Murata Power Solutions Inc. SFECV10M7CQ0C01-R0	2706 (6915 Metric)	3 Lead	2 dB	0.067 "	1.7 mm	FM	470 Ohm	10.7 MHz	500 kHz	0.059 "	0.272 in	6.9 mm	1.5 mm	Surface Mount
Murata Power Solutions Inc. SFECV10M7JA00-R0	2706 (6915 Metric)	3 Lead	5.5 dB	0.067 "	1.7 mm	FM	330 Ohm	10.7 MHz	150 kHz	0.114 in	0.272 in	6.9 mm	2.9 mm	Surface Mount
Murata Power Solutions Inc. SFECV10M7FZ00-R0				0.059 in	1.5 mm	FM		10.7 MHz		0.118 in	0.272 in	6.9 mm	3 mm	Surface Mount
Murata Power Solutions Inc. SFECV10M7KA00-R0	2706 (6915 Metric)	3 Lead	6 dB	0.067 "	1.7 mm	FM	330 Ohm	10.7 MHz		0.114 in	0.272 in	6.9 mm	2.9 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10.7MHz Center FM Ceramic Filter 110 kHz 330Ohm 2706 (6915 Metric), 3 PC Pad
