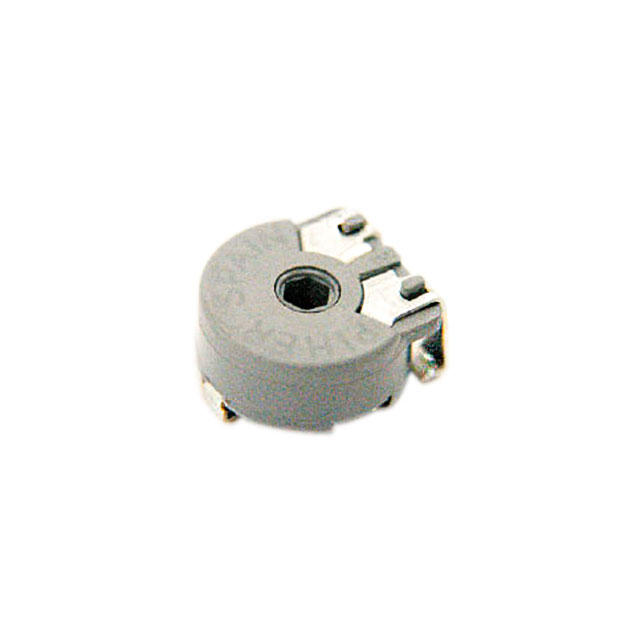

PS10MV50-503A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 50K OHM 0.15W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS10MV50-503A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 50K OHM 0.15W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS10MV50-503A3030-PM |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 150 mW |
| Resistance | 50 kOhms |
| Resistive Material | Carbon |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.56 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.56 | ||
| 10 | $ 1.25 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.92 | |||
| Tape & Reel (TR) | 500 | $ 0.67 | ||
| 1000 | $ 0.62 | |||
| 1500 | $ 0.60 | |||
| 2500 | $ 0.57 | |||
| 3500 | $ 0.55 | |||
| 5000 | $ 0.53 | |||
| 12500 | $ 0.49 | |||
Description
General part information
PS10MV50 Series
50 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Documents
Technical documentation and resources
