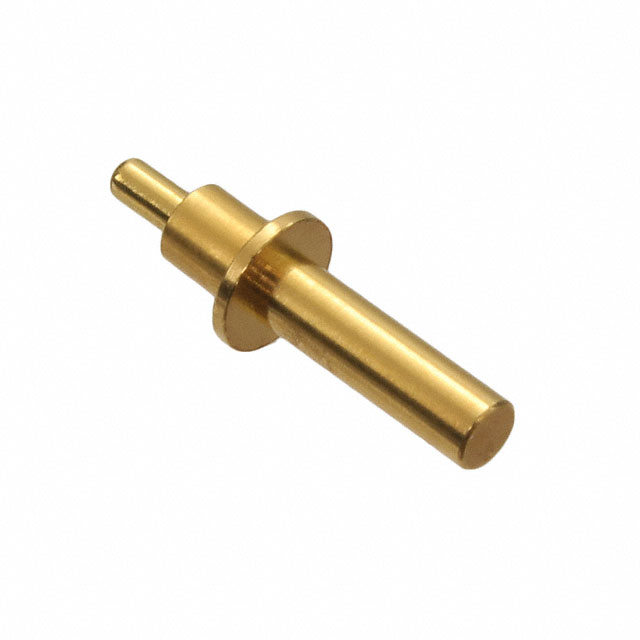

PH-MVP-26515-10-10-WP
ActiveAdam Tech
CONTACT SPRING LOADED T/H GLD WP
Deep-Dive with AI
Search across all available documentation for this part.
PH-MVP-26515-10-10-WP
ActiveAdam Tech
CONTACT SPRING LOADED T/H GLD WP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PH-MVP-26515-10-10-WP |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 10 A |
| Features | IP67 |
| Mating Cycles | 20000 |
| Maximum Working Height [Max] [z] | 12.7 mm |
| Maximum Working Height [Max] [z] | 0.5 in |
| Minimum Working Height [Min] | 0.402 in |
| Minimum Working Height [Min] | 10.2 mm |
| Mounting Type | Through Hole |
| Operating Force - Initial | 20 gf |
| Pad Layout Dimension [diameter] | 0.091 in |
| Pad Layout Dimension [diameter] | 2.3 mm |
| Plunger Size [diameter] | 1.2 mm |
| Plunger Size [diameter] | 0.047 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.91 | |
| 10 | $ 2.99 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.31 | |||
| 250 | $ 2.09 | |||
| 500 | $ 1.95 | |||
| 1000 | $ 1.82 | |||
| 2500 | $ 1.66 | |||
Description
General part information
PH-MVP-26 Series
Contact Spring Through Hole
