R-30Y-0050
ActiveOK INDUSTRIES

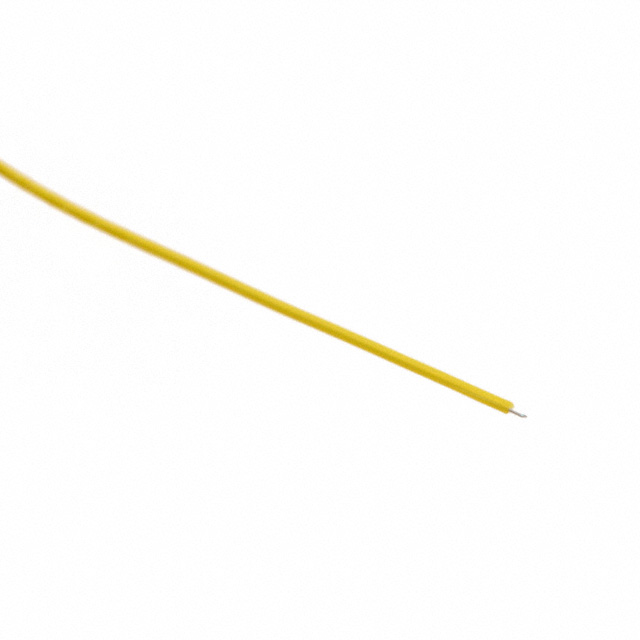

WIRE WW 30AWG PVDF YELLOW 50'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R-30Y-0050
ActiveOK INDUSTRIES
WIRE WW 30AWG PVDF YELLOW 50'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R-30Y-0050 |
|---|---|
| Conductor Diameter [diameter] | 0.25 mm |
| Conductor Diameter [diameter] | 0.01 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.019 in |
| Jacket (Insulation) Diameter [diameter] | 0.5 mm |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket Color | Yellow |
| Length [x] | 50 ft |
| Length [x] | 15.24 m |
| Ratings | VW-1, UL Style 1423 |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Roll | 1 | $ 17.15 | |
| 2 | $ 16.34 | |||
| 3 | $ 15.87 | |||
| 5 | $ 15.31 | |||
| 7 | $ 14.95 | |||
| 10 | $ 14.57 | |||
| 25 | $ 13.95 | |||
Description
General part information
R-30Y Series
Wire Wrap 30 AWG Yellow Polyvinylidene Fluoride (PVDF) 50' (15.24m)
Documents
Technical documentation and resources
