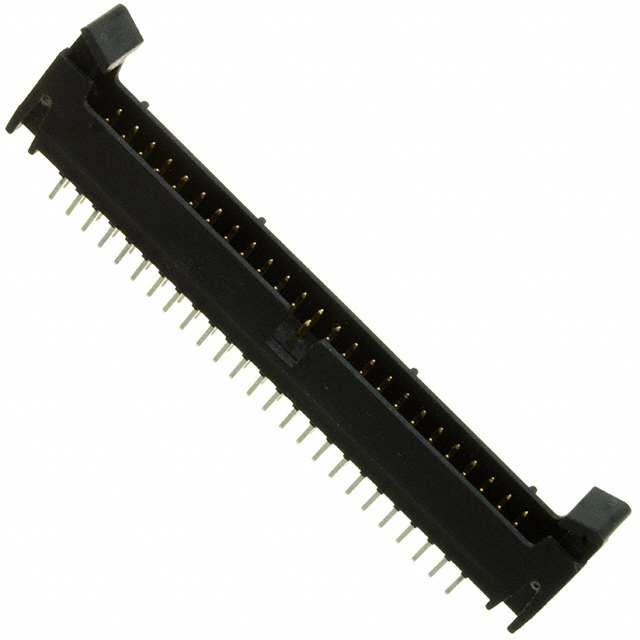

155250-6303-RB

Active

3M (TC)

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE STRAIGHT, 1552 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +1

155250-6303-RB

Active

3M (TC)

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE STRAIGHT, 1552 SERIES

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	155250-6303-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

155250 Series

Part	Fastening Type	Number of Positions	Contact Material	Contact Type	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Connector Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Current Rating (Amps)	Number of Positions Loaded	Termination	Insulation Color	Style	Number of Rows	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post
3M (TC) 155250-2300-RB-WG	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.425 in	10.8 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	30 Áin	0.76 Ám	200 µin	5.08 µm	Keying Slot Pick and Place	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Surface Mount	0.079 in	2 mm
3M (TC) 155250-2300-RB	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.425 in	10.8 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	30 Áin	0.76 Ám	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Surface Mount	0.079 in	2 mm
3M (TC) 155250-6302-RA	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.425 in	10.8 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	10 çin	0.25 çm	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Through Hole	0.079 in	2 mm	2.84 mm	0.112 in
3M (TC) 155250-6303-RB	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.425 in	10.8 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	30 Áin	0.76 Ám	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Through Hole	0.079 in	2 mm	3.94 mm	0.155 "
3M (TC) 155250-2200-RB	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.425 in	10.8 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	30 Áin	0.76 Ám	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Surface Mount	0.079 in	2 mm
3M (TC) 155250-6203-RB	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.425 in	10.8 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	30 Áin	0.76 Ám	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Through Hole	0.079 in	2 mm	3.94 mm	0.155 "
3M (TC) 155250-5302-RB	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.247 in	6.28 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	30 Áin	0.76 Ám	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Through Hole Right Angle	0.079 in	2 mm	2.84 mm	0.112 in
3M (TC) 155250-5202-RA	Latch Lock/Eject Hooks	50	Copper Alloy	Male Pin	0.247 in	6.28 mm	0.079 in	2 mm	105 ░C	-55 °C	0.15 in	3.81 mm	Square	Header	Shrouded - 4 Wall	10 çin	0.25 çm	200 µin	5.08 µm	Keying Slot	UL94 V-0	Gold	Tin	1.25 A	All	Solder	Black	Board to Cable/Wire	2	Through Hole Right Angle	0.079 in	2 mm	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.87
		10	$ 14.54
		80	$ 11.65
		440	$ 10.87
LCSC	Piece	1	$ 8.62
		200	$ 3.44
		500	$ 3.32
		1000	$ 3.27
Newark	N/A	1	$ 7.94
		10	$ 7.62
		25	$ 7.03

Description

General part information

155250 Series

Connector Header Through Hole 50 position 0.079" (2.00mm)
