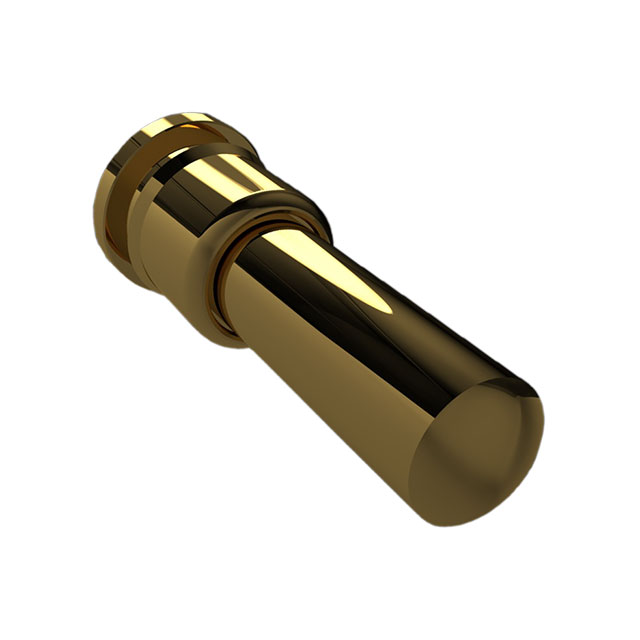

90027-AS

Active

PRECI-DIP SA

POGO PIN SPRING PROBE CONNECTOR ROHS

Search across all available documentation for this part.

Active

PRECI-DIP SA

POGO PIN SPRING PROBE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	90027-AS

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.256 in
Maximum Working Height [Max]	6.5 mm
Minimum Working Height [Min]	0.201 in
Minimum Working Height [Min]	5.1 mm
Mounting Type	Surface Mount
Operating Force - Initial	25.49 gf
Operating Force - Mid Compression	61.18 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [custom]	1.83 mm
Pad Layout Dimension [custom]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

Part	Mounting Type	Operating Force - Mid Compression	Contact Finish	Contact Material	Mating Cycles	Contact Type	Current Rating (Amps)	Minimum Working Height [Min]	Minimum Working Height [Min]	Plunger Size [diameter]	Plunger Size [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force - Initial	Pad Layout Dimension [custom]	Pad Layout Dimension [custom]	Maximum Working Height [Max]	Maximum Working Height [Max]	Contact Finish Thickness	Contact Finish Thickness
PRECI-DIP SA 90027-AS	Surface Mount	61.18 gf	Gold	Brass Alloy	40000	Sleeve & Plunger (Pogo Pins)	3 A	0.201 in	5.1 mm	0.042 in	1.07 mm	-55 °C	125 °C	25.49 gf	1.83 mm	0.072 in	0.256 in	6.5 mm	0.51 µm	20 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Spring Surface Mount
