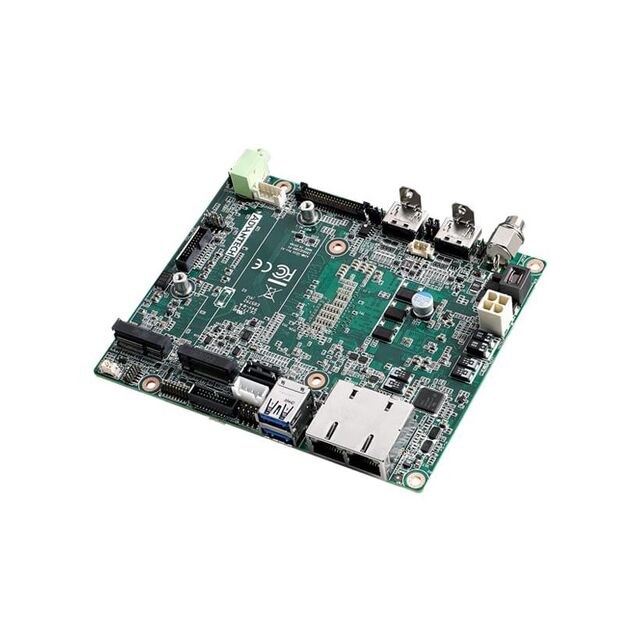

AIMB-U233E-U7A1E
ActiveAdvantech Corp
SBC 1.7GHZ 1 CORE 16GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
AIMB-U233E-U7A1E
ActiveAdvantech Corp
SBC 1.7GHZ 1 CORE 16GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-U233E-U7A1E |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel Core i7-8665UE |
| Digital I/O Lines | 16 |
| Ethernet | 1000 Mbps, 10 Mbps, 100 Mbps |
| Ethernet | RJ45 (2), GbE (2) |
| Expansion Site/Bus | PCIe, M.2 |
| Form Factor | M.2 E-Key 2230 |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 6.25 W |
| RAM Capacity/Installed | 16 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 5.4 in |
| Size / Dimension [x] | 5.4 in |
| Size / Dimension [y] | 111.76 mm |
| Size / Dimension [y] | 4.4 " |
| Speed | 1.7 GHz |
| Storage Interface | M.2, SATA 3.0 (1) |
| USB | USB 2.0 (2), USB 3.2 (2) |
| Video Outputs | eDP, HDMI, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1433.92 | |
Description
General part information
AIMB-U233 Series
Single Board Computer 1.7GHz 1 Core 16GB/0GB RAM Intel Core i7-8665UE
Documents
Technical documentation and resources
No documents available
