09212403001

Active

HARTING Technology Group

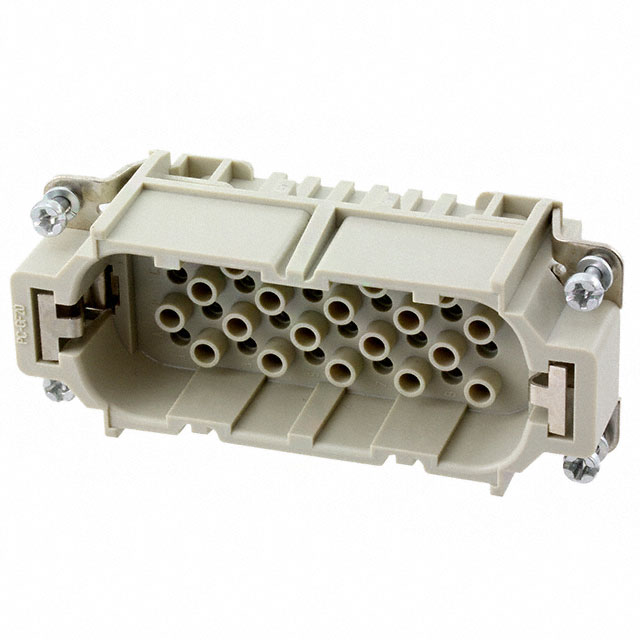

HEAVY DUTY INSERT, PLUG, 40+PE, 2.5MM2

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY INSERT, PLUG, 40+PE, 2.5MM2

Technical Specifications

Parameters and characteristics for this part

Specification	09212403001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han D® HMC
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	40+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Color	Current Rating (Amps)	Voltage Rating	Termination Style	Gender	Contact Type	Size	Number of Positions
HARTING Technology Group 09212403001	UL94 V-0	125 °C	-40 °C	Insert without Contacts	Polycarbonate (PC)	Gray	10 A	250 VDC	Crimp	Male	Han D® HMC	16 B	40+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 40+Ground Position Crimp
