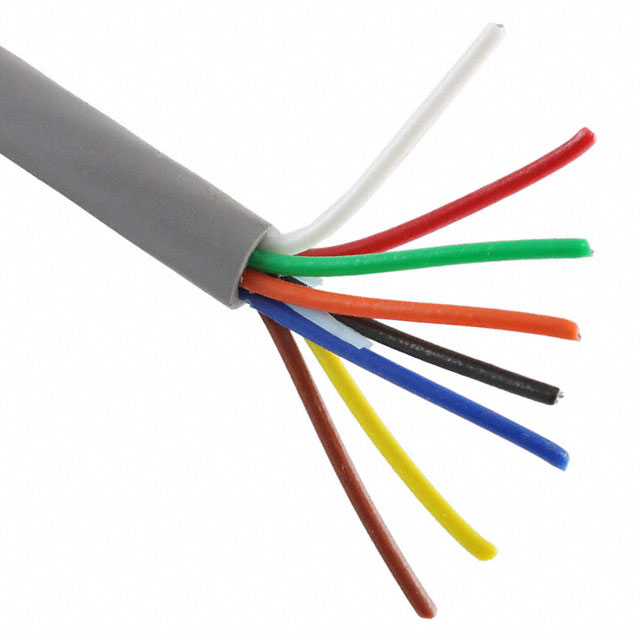

1896/8C SL002

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 8 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 8 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics for this part

Specification	1896/8C SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.273 in
Jacket (Insulation) Diameter [diameter]	6.93 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Usage	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket Color	Conductor Material	Jacket (Insulation) Material	Conductor Insulation	Voltage	Wire Gauge	Length	Length
ALPHA WIRE 1896/8C SL002	Communication Control	8	500 '	152.4 m	0.02 in	0.508 mm	0.273 in	6.93 mm	-20 C	80 C	28	7	Multi-Conductor	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	20 AWG
ALPHA WIRE 1896/8C SL001	Communication Control	8			0.02 in	0.508 mm	0.273 in	6.93 mm	-20 C	80 C	28	7	Multi-Conductor	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	20 AWG	1000 ft	304.8 m
ALPHA WIRE 1896/8C SL005	Communication Control	8	100 ft	30.5 m	0.02 in	0.508 mm	0.273 in	6.93 mm	-20 C	80 C	28	7	Multi-Conductor	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The 1896/8C SL002 is a 8-core Unshielded Cable with tinned copper conductor, PVC insulator and a slate PVC jacket.
