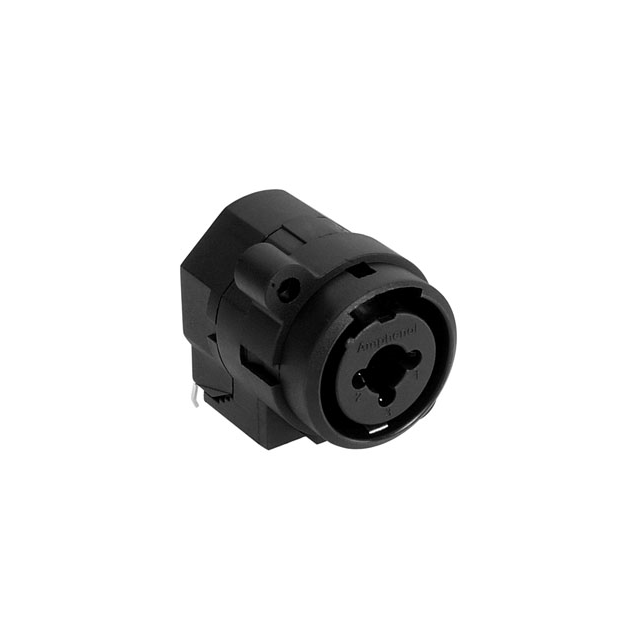

ACJC10HL BULK

Active

AMPHENOL AUDIO

1/4" STEREO/XLR PCB 10 SKT NO LA

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

1/4" STEREO/XLR PCB 10 SKT NO LA

Technical Specifications

Parameters and characteristics for this part

Specification	ACJC10HL BULK

Body Color	Black
Connector Type	Phone Jack, Dual
Contact Material	Bronze, Brass
Contact Material - Plating	Gold, Silver
Current Rating (Amps)	7.5 A
Features	Board Guide
Gender	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts	4 Contacts, 11
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size	0.937 "
Panel Hole Size	23.8 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Kinked Pin, Solder

Part	Connector Type	Body Color	Contact Material	Gender	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Panel Hole Size	Panel Hole Size	Contact Material - Plating	Mounting Type	Features	Current Rating (Amps)	Internal Switch(s)	Termination	Signal Lines	Shielding	Contact Material - Plating [custom]
AMPHENOL AUDIO ACJC10HL BULK	Dual Phone Jack	Black	Brass Bronze	Female	4 Contacts 11	70 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	0.937 "	23.8 mm	Gold Silver	Panel Mount Right Angle Through Hole	Board Guide	7.5 A		Kinked Pin Solder	Stereo	Unshielded
AMPHENOL AUDIO ACJC10AHL BULK	Dual Phone Jack	Black	Bronze	Female	4 Contacts 11	70 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	0.866 in	22 mm		Panel Mount Right Angle Through Hole	Board Guide	7.5 A		Kinked Pin Solder	Stereo	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (4 Conductor, TRRS) Connector Kinked Pin, Solder
