AHDM06-24-19SR-059
ActiveAmphenol Sine Systems Corp

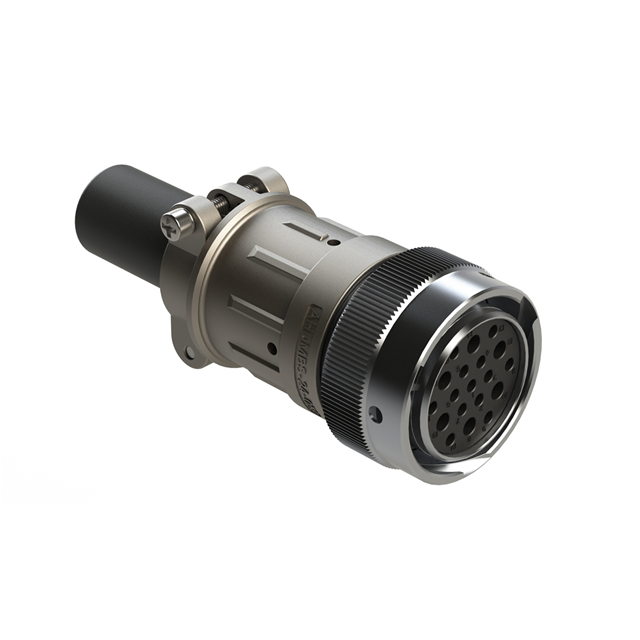

CONN PLG HSG FMALE 19POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
AHDM06-24-19SR-059
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 19POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDM06-24-19SR-059 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12, 16 |
| Contact Size | 6, 13 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Housing Color | Silver |
| Includes | 1 Backshell, 1 Connector |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 24-19 |
| Shielding | Unshielded |
| Type | For Female Sockets |
AHDM06 Series
...
| Part | Housing Color | Includes | Shell Finish | Contact Type | Number of Positions | Insert Material | Note | Contact Shape | Orientation | Connector Type | Shielding | Type | Shell Material | Shell Size - Insert | Fastening Type | Features | Contact Size | Contact Size | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Silver | 1 Backshell 1 Connector | Nickel | Crimp | 19 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Female Sockets | Zinc Alloy | 24-19 | Bayonet Lock | Backshell Cable Clamp Coupling Nut | 12 16 | 6 13 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | |||
Amphenol Sine Systems Corp | Silver | Nickel | Crimp | 19 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Male Pins | Zinc Alloy | 24-19 | Bayonet Lock | Coupling Nut | 12 16 | 6 13 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | ||||
Amphenol Sine Systems Corp | Silver | 1 Backshell 1 Connector | Nickel | Crimp | 23 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Male Pins | Zinc Alloy | Bayonet Lock | Backshell Cable Clamp Coupling Nut | 16 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | 24 | 23 | |||
Amphenol Sine Systems Corp | Silver | 1 Backshell 1 Connector | Nickel | Crimp | 8 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Male Pins | Zinc Alloy | 18-8 | Bayonet Lock | Backshell Cable Clamp Coupling Nut | 12 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | ||||
Amphenol Sine Systems Corp | Silver | Nickel | Crimp | 21 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Female Sockets | Zinc Alloy | 24-21 | Bayonet Lock | Coupling Nut | 12 16 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | |||||
Amphenol Sine Systems Corp | Silver | Nickel | Crimp | 7 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Female Sockets | Zinc Alloy | 24-7 | Bayonet Lock | Coupling Nut | 8 12 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | |||||
Amphenol Sine Systems Corp | Silver | 1 Backshell 1 Connector | Nickel | Crimp | 18 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Female Sockets | Zinc Alloy | Bayonet Lock | Backshell Cable Clamp Coupling Nut | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | 18 | 24 | 12 (3) 16 (14) 8 (1) | |||
Amphenol Sine Systems Corp | Silver | Nickel | Crimp | 18 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Male Pins | Zinc Alloy | Bayonet Lock | Coupling Nut | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | 18 | 24 | 12 (3) 16 (14) 8 (1) | ||||
Amphenol Sine Systems Corp | Silver | 1 Backshell 1 Connector | Nickel | Crimp | 9 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Female Sockets | Zinc Alloy | 24-9 | Bayonet Lock | Backshell Cable Clamp Coupling Nut | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | 12 (6) 4 (1) 8 (2) | ||||
Amphenol Sine Systems Corp | Silver | Nickel | Crimp | 31 | Thermoplastic | Contacts Not Included | Circular | Keyed | Plug Housing | Unshielded | For Male Pins | Zinc Alloy | Bayonet Lock | Coupling Nut | 16 | IP67 IP69K | -55 °C | 125 °C | Free Hanging (In-Line) | 31 | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.90 | |
| 10 | $ 37.57 | |||
| 25 | $ 35.94 | |||
| 50 | $ 34.78 | |||
| 200 | $ 33.62 | |||
Description
General part information
AHDM06 Series
19 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
