UCC28742EVM-001

Active

Texas Instruments

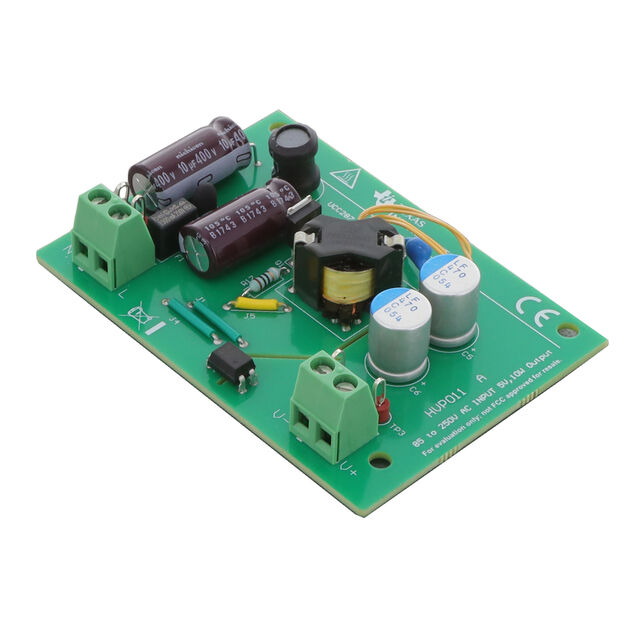

UCC28742 AC TO DC SWITCHING CONVERTER 4.75V TO 5.25V OUTPUT EVALUATION BOARD

Search across all available documentation for this part.

Active

Texas Instruments

UCC28742 AC TO DC SWITCHING CONVERTER 4.75V TO 5.25V OUTPUT EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Supplied Contents	Outputs and Type	Outputs and Type	Main Purpose	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Regulator Topology	Output Isolation	Frequency - Switching	Package / Case	Mounting Type	Voltage - Start Up	Topology	Duty Cycle	Supplier Device Package	Fault Protection	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments UCC28742EVM-001	5 V	Board(s)	Non-Isolated	1	AC/DC Primary Side	Fully Populated	85 VAC	265 VAC	2 A	Flyback
Texas Instruments UCC28742DBVR											Isolated	80 kHz	SOT-23-6	Surface Mount	21.6 V	Flyback	99 %	SOT-23-6	Current Limiting Over Voltage Short Circuit	35 V	9 V	125 °C	-40 °C
Texas Instruments UCC28742DBVT											Isolated	80 kHz	SOT-23-6	Surface Mount	21.6 V	Flyback	99 %	SOT-23-6	Current Limiting Over Voltage Short Circuit	35 V	9 V	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.80

General part information

UCC28742 - AC/DC, Primary Side 1, Non-Isolated Outputs Evaluation Board
