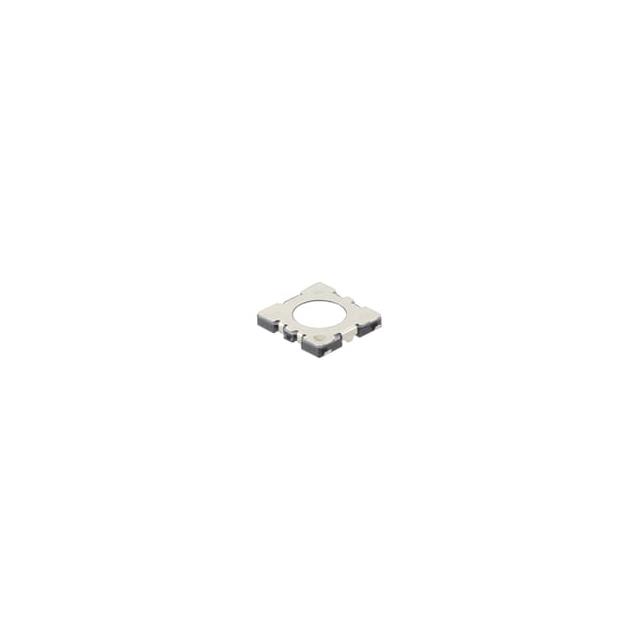

SKSDPBE010

Active

Alps Alpine

SWITCH TACTILE N.O./N.C. DPST FLUSH ROUND BUTTON J-LEAD 0.05A 12VDC 1.6N SMD T/R

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE N.O./N.C. DPST FLUSH ROUND BUTTON J-LEAD 0.05A 12VDC 1.6N SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SKSDPBE010

Actuator Height off PCB, Vertical	0.6 mm
Actuator Orientation	Top Actuated
Actuator Type	Without
Circuit	DPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force [Max]	163 gf
Operating Force [Min]	82 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.4 mm
Outline [y]	3.9 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm, 0.25 mm
Termination Style	J Lead

Part	Mechanical Life	Contact Rating @ Voltage	Circuit	Operating Force [Max]	Operating Force [Min]	Actuator Height off PCB, Vertical	Actuator Orientation	Switch Function	Actuator Type	Mounting Type	Outline [x]	Outline [y]	Switch Travel	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination
Alps Alpine SKSDPBE010	100000 Cycles	0.05 A 12 VDC	DPST-NO	163 gf	82 gf	0.6 mm	Top Actuated	Off-Mom	Without	Surface Mount	4.4 mm	3.9 mm	0.15 mm 0.25 mm	J Lead	90 °C	-40 °C	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch DPST-NO Top Actuated Surface Mount
