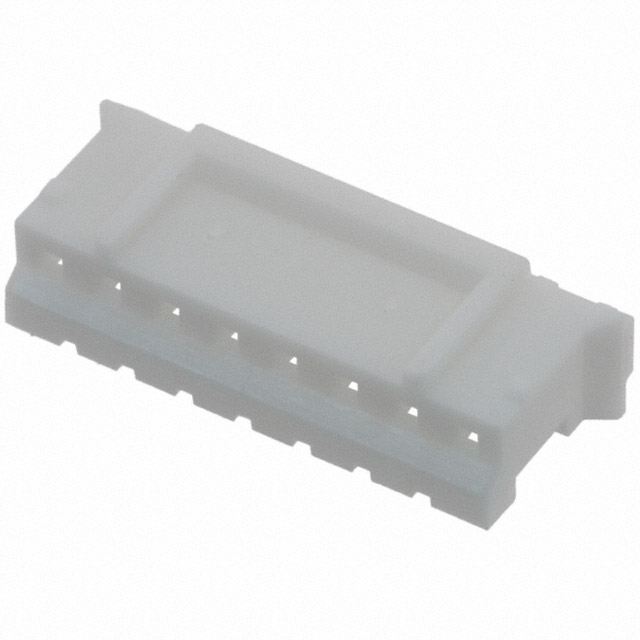

SWH201-NULN-S08-UU-WH

Active

Sullins Connector Solutions

CONN RCPT HSG 8POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

SWH201-NULN-S08-UU-WH

Active

Sullins Connector Solutions

CONN RCPT HSG 8POS 2.00MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWH201-NULN-S08-UU-WH

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

SWH201 Series

Part	Number of Positions	Mounting Type	Insulation Material	Color	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Note	Number of Rows	Connector Type	Contact Termination
Sullins Connector Solutions SWH201-NULN-S07-UU-WH	7	Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S06-UU-WH	6	Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S03-UU-WH		Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S09-UU-WH	9	Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S11-UU-WH	11	Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S05-UU-WH		Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S08-UU-WH	8	Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp
Sullins Connector Solutions SWH201-NULN-S02-UU-WH	2	Free Hanging (In-Line)	Nylon Polyamide (PA)	White	Female Socket	0.079 in	2 mm	-25 °C	85 °C	Contacts Not Included	1	Receptacle	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.14
		10	$ 0.11
		25	$ 0.09
		50	$ 0.08
		100	$ 0.08
		250	$ 0.07
		500	$ 0.07
		1000	$ 0.06
		2500	$ 0.05

Description

General part information

SWH201 Series

8 Rectangular Connectors - Housings Receptacle White 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
