XQEAWT-00-0000-00000HDE5-SB01

Active

New Energy

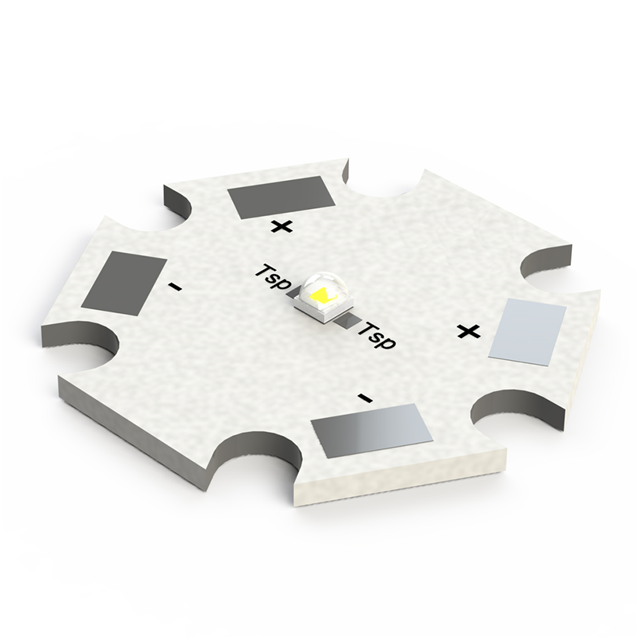

LED MOD XLAMP WHT STARBRD 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XLAMP WHT STARBRD 4000K

Technical Specifications

Parameters and characteristics for this part

Part	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Color	Type	Temperature - Test	CCT (K)	Current - Max [Max]	Viewing Angle	Lens Type	Lumens/Watt @ Current - Test
New Energy XQEAWT-H0-0000-00000BFE1-SB01	70	2.9 V	350 mA	Starboard	19.89 mm	126 lm	Cool White	LED Module	85 °C	6500 K	1 A	120 °	Flat
New Energy XQEAWT-00-0000-00000BFE1-SB01	70	2.9 V		Starboard	19.89 mm	122 lm	White Cool White Warm	LED Module	85 °C	6500 K	1 A	110 °	Domed
New Energy XQEAWT-H0-0000-00000HBE8-SB01	80	2.9 V	350 mA	Starboard	19.89 mm		Warm White	LED Module	85 °C	2700 K	1 A	120 °	Flat	96 lm/W
New Energy XQEAWT-H0-0000-00000LEE5-SB01	80	2.9 V	350 mA	Starboard	19.89 mm		Neutral White	LED Module	85 °C	4000 K	1 A	120 °	Flat	109 lm/W
New Energy XQEAWT-H0-0000-00000HDE8-SB01	80	2.9 V	350 mA	Starboard	19.89 mm		Warm White	LED Module	85 °C	2700 K	1 A	120 °	Flat
New Energy XQEAWT-00-0000-00000HDE5-SB01	75	2.9 V	350 mA	Starboard	19.89 mm		Neutral White	LED Module	85 °C	4000 K	1 A	110 °	Domed	116 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module XLamp® XQ-E White, Neutral Starboard
