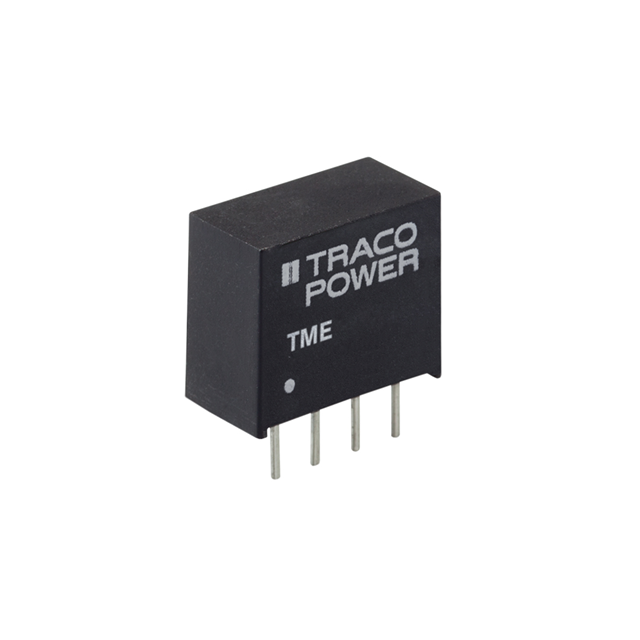

TME 2405S
ActiveTraco Power
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
TME 2405S
ActiveTraco Power
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TME 2405S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 70 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SIP Module |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [x] | 11.5 mm |
| Size / Dimension [y] | 7.1 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.99 | |
| 10 | $ 5.50 | |||
| 25 | $ 5.32 | |||
| 50 | $ 5.19 | |||
| 100 | $ 5.06 | |||
| 250 | $ 4.89 | |||
| 500 | $ 4.77 | |||
Description
General part information
TME 2405 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
